D-Shape Accessories Jackpost
Cinch offers a variety of d-shape connector accessories including jackposts.
Attribute Filters
Material
Panel Thickness (mm)
Thread
Application
Min Operating Temp. (°F)
14 Products
Show Filters
Hide Filters
| Product | Brand | Accessory Type | Material | Panel Thickness (mm) | Thread | Application | Min Operating Temp. (°C) | Max Operating Temp. (°C) | Min Operating Temp. (°F) | Max Operating Temp. (°F) |
|---|---|---|---|---|---|---|---|---|---|---|
| Dura-Con | Jackpost | Stainless steel | N/A | #4-40 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Stainless steel | N/A | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | 0.8 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | 1.2 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | 1.6 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | 2.4 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | N/A | #4-40 | Commercial | -55 | 135 | -65 | 275 | |
New Product
DCJS9-51BS |
Dura-Con | Jackpost | Steel | N/A | #2-56 | Commercial | -55 | 135 | -65 | 275 |
| Dura-Con | Jackpost | Steel | 0.8 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | 1.2 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | 1.6 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Steel | 2.4 | #2-56 | Commercial | -55 | 135 | -65 | 275 | |
| Dura-Con | Jackpost | Stainless steel | N/A | #2-56 | Military MIL-DTL-83513 | -55 | 135 | -55 | 275 | |
| Dura-Con | Jackpost | Stainless steel | N/A | #4-40 | Military MIL-DTL-83513 | -55 | 135 | -55 | 275 |
Drawing
DCJPRM031
Steel Jackpost Panel Thickness 0.031" (0.8 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread
DCJPRM047
Steel Jackpost Panel Thickness 0.047" (1.2 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread
DCJPRM063
Steel Jackpost Panel Thickness 0.063" (1.6 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread
DCJPRM094
Steel Jackpost
Panel Thickness 0.094" (2.4 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread
Panel Thickness 0.094" (2.4 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 exterior thread and #2-56 internal thread

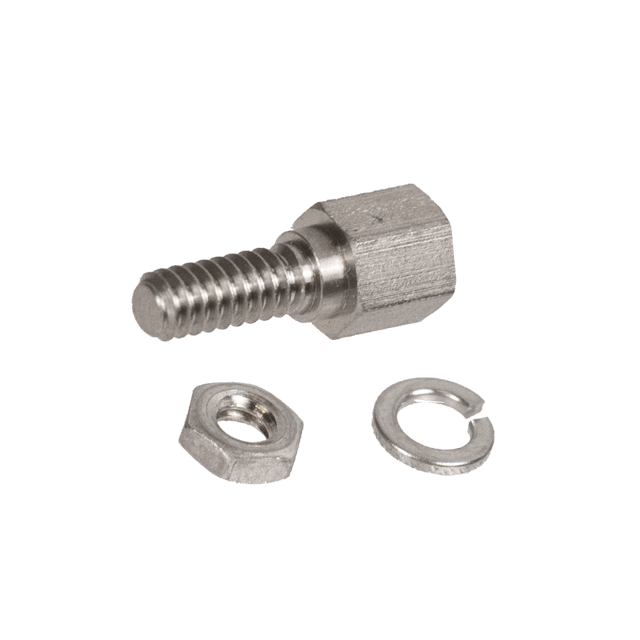

DCJS100BS
Cinch Dura-Con replacement jackpost fasteners for 100 position micro-d backshells. Jackposts have #4-40 threads and include C clamps.

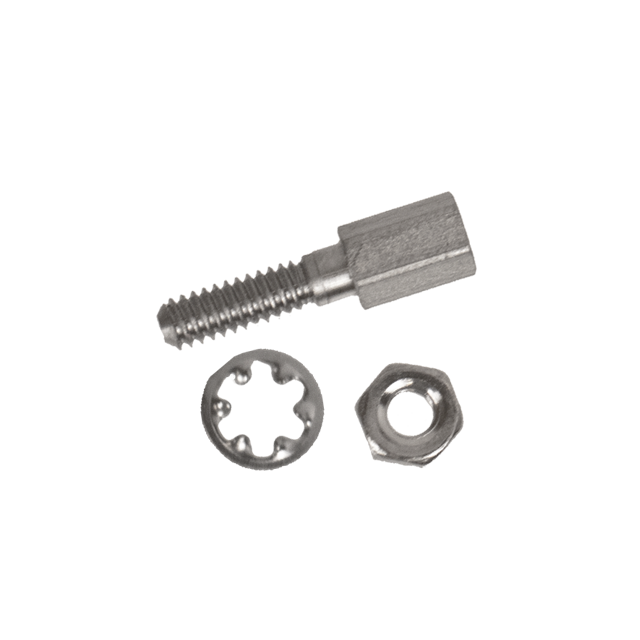

DCJS9-51BS
Cinch Dura-Con replacement jackpost fasteners for 9-51 position micro-d backshells. Jackposts have #2-56 threads and include C clamps.
DN0000808
Steel Hermetic Jackpost
Panel Thickness 0.031" (0.8 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
Panel Thickness 0.031" (0.8 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
DN0000812
Steel Hermetic Jackpost
Panel Thickness 0.047" (1.2 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
Panel Thickness 0.047" (1.2 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
DN0000816
Steel Hermetic Jackpost
Panel Thickness 0.063" (1.6 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
Panel Thickness 0.063" (1.6 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
DN0000824
Steel Hermetic Jackpost
Panel Thickness 0.094" (2.4 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
Panel Thickness 0.094" (2.4 mm)
Operating Temperature -65ºF (-55ºC) to 275ºF (135ºC)
#2-56 Thread
M83513/05-07
Microminiature D-shaped Panel mounting hardware
Qualified (QPL) to MIL-DTL-83513
Jackpost
#2-56 Thread
Qualified (QPL) to MIL-DTL-83513
Jackpost
#2-56 Thread
M83513/05-17
Microminiature D-shaped Panel mounting hardware
Qualified (QPL) to MIL-DTL-83513
Jackpost
#4-40 Thread
Qualified (QPL) to MIL-DTL-83513
Jackpost
#4-40 Thread
