C-ENXBE25Q1PA Rectangular Inserts
C-ENXBE25Q1PA
left chevron icon right chevron icon

Active

C-ENXBE25Q1PA Inserts

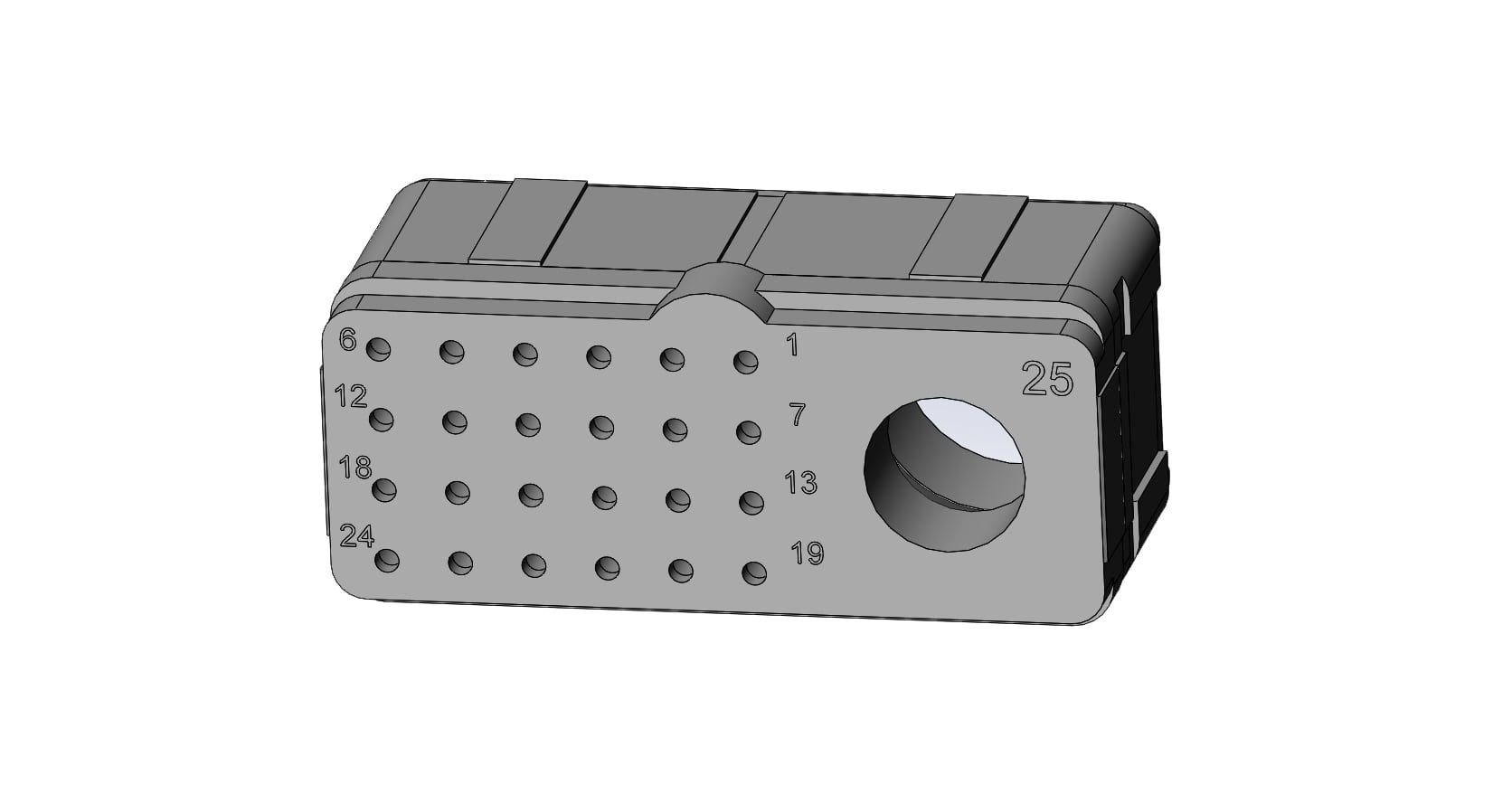

C-ENX B Size Insert | Pin | Enviromental | Interfacial Seal and Rear Grommet | 24X Size 22 Contacts | 1X Size 8 Quadrax Contact | Key Code A
resource icon View Drawing

Stock Check

quote icon Request Quote
Specifications
active icon inactive icon Specs
Resources
active icon inactive icon Resources
Technical Support
active icon inactive icon Technical Support

Features & Specifications

Contacts Not Included
Insert Size Insert for C-ENX B1, B2, B3, B4
Insert Type Pin
Insert Keying Key code A
Insert Arrangement 24 x size 22 contacts | 1 x size 8 quadrax contact
Insert Material Thermoplastic
Insert Retention (N) 400
Insert Retention (lbs) 90
Insulation Resistance >5000 mOhm
Dielectric Withstanding Voltage (VRMS @ sea level) 1500
Operating Temp. Range (°C) -65 to 175
Operating Temp. Range (°F) -85 to 347
Salt Spray 96 hrs
Humidity 10 days
Environmental Sealing Environmental
Seal and Grommet Material Fluorosilicone elastomer
Altitude Immersion 3 cycles @ 50,000 ft
Brand C-ENX
