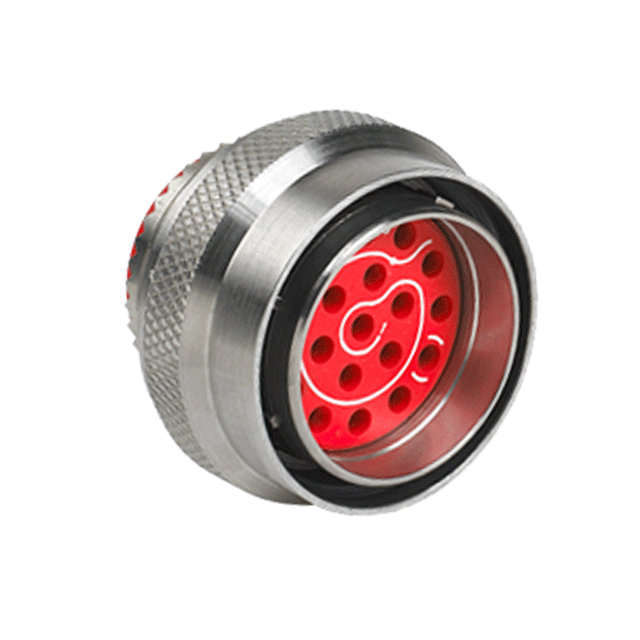

C48 Series
ConnectorsThe Omega C48 family of connectors are qualified to numerous Boeing specifications, including the high-performance standard and address unique challenges such as shielding, environmental sealing, fluid resistance, and vibration resistance. They are ideal for use in environments where high durability and performance are required.
Options and Variations
- Shell Sizes:Available in nine shell sizes 8, 10, 12, 14, 16, 18, 20, 22, and 24.
- Contact Styles:Includes pin or socket.
- Coupling Styles:Available in threaded or bayonet coupling.

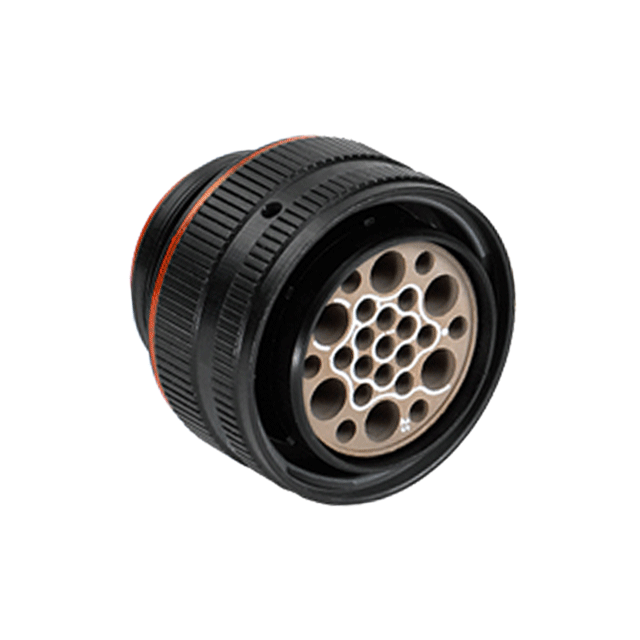

- Materials:Offered in aluminum alloy and composite materials with finishes such as, olive drab chromate over calcium, electroless nickel, and black anodized.
- Environmental Sealing:Has a wide temperature range, and is built to withstand moisture, sea salt spray, as well as vibration and shock resistance.
Special Attributes:

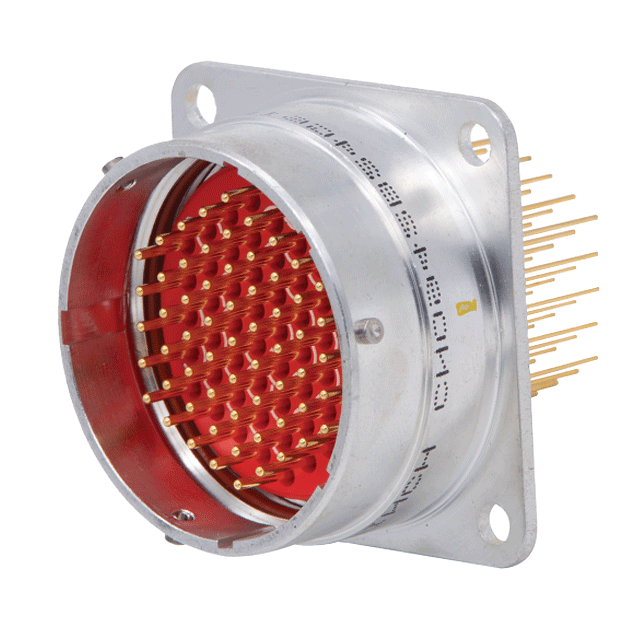

- Mounting Options:Square-flange, single-hole, or straight plug
- Durability:Rated for 200 mating cycles and 96-hour salt spray exposure.
- Electrical Performance:High insulation resistance of 5000 megohms and 1500 Vac dielectric strength.
Configure Part
Use the dropdown form below to configure this part to fit your exact specifications.
All fields are required.
Current Configuration:
Use the form to start configuring this part
Coupling Style
Not Selected
Shell Style
Not Selected
Environmental Class
Not Selected
Shell Size
Not Selected
Insert Arrangement
Not Selected
Contact Style
Not Selected
Alternate Shell Positions
Not Selected
Order Code (Deviations)
Not Selected
