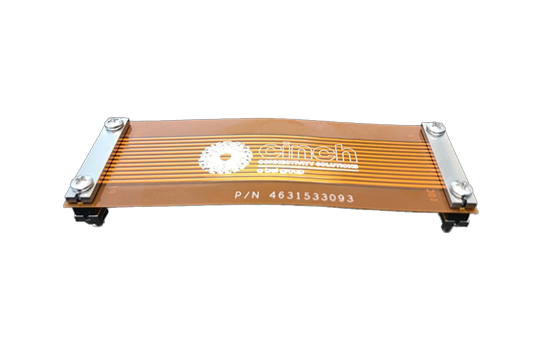

Stacking & Compression
Cinch provides solderless, high-density stacking, and compression solutions perfect for aerospace, data centers, and test equipment applications. This patent-protected 2-piece design facilitates 50+ Gbps and accommodates profiles ranging from 0.020” to 1.0”.
Product Categories
Attribute Filters
Fastener
Height (mm)
Height (in)
Min Compression Force (kg)
No. of Positions
Alignment
Min Compression Force (lb)
Rows
20 Products
Show Filters
Hide Filters
Product | Brand | Connector Type | Fastener | Height (mm) | Height (in) | Min Compression Force (kg) | No. of Positions | Alignment | Min Compression Force (lb) | Min Operating Temp. (°C) | Max Operating Temp. (°C) | Rows | Contact Finish |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 3.18 | 0.125 | 1.8 | 25 | Holes | 3.9 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 6.35 | 0.250 | 1.8 | 25 | Holes | 3.9 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 3.18 | 0.125 | 1.8 | 25 | Pins | 3.9 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 6.35 | 0.250 | 1.8 | 25 | Pins | 3.9 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 3.18 | 0.125 | 3.6 | 51 | Pins | 8.0 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 6.35 | 0.250 | 3.6 | 51 | Pins | 8.0 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 3.18 | 0.125 | 3.6 | 51 | Holes | 8.0 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 2x no.2 Thru Holes (dia. 0.090in) | 6.35 | 0.250 | 3.6 | 51 | Holes | 8.0 | -55 | 125 | 2 | Gold | |
Cin::APSE | Stacking Compression | 4x no.2-56 Tapped Insert | 7.04 | 0.277 | 17.6 | 249 | Pins | 38.9 | -55 | 125 | 5 | Gold | |
Cin::APSE | Stacking Compression | 4x no.4 Thru Holes (dia. 0.124in) | 7.04 | 0.277 | 17.6 | 249 | Holes | 38.9 | -55 | 125 | 5 | Gold | |
Cin::APSE | Stacking Compression | 3x no.4 Thru Holes (dia. 0.124in) | 7.04 | 0.277 | 11.8 | 166 | Pins | 25.9 | -55 | 125 | 5 | Gold | |
Cin::APSE | Stacking Compression | 2x no.4 Thru Holes (dia. 0.124in) | 7.04 | 0.277 | 5.9 | 83 | Pins | 13.0 | -55 | 125 | 5 | Gold | |
Cin::APSE | |||||||||||||
Cin::APSE | |||||||||||||
Cin::APSE | |||||||||||||
Cin::APSE | |||||||||||||
Cin::APSE | |||||||||||||
Cin::APSE | |||||||||||||
Cin::APSE | |||||||||||||
Cin::APSE |
3800520001

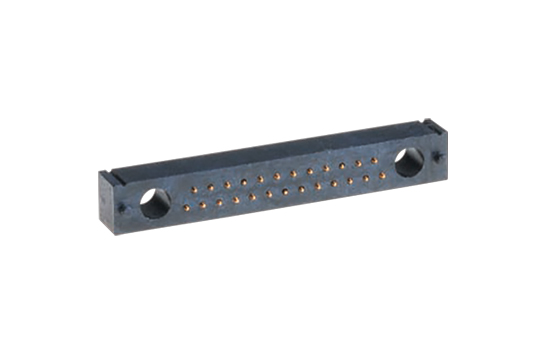

CIN::APSE Stacking connector with 25 positions dispersed in 2 rows. The connector height is 0.125" (3.18 mm).
3800520002
CIN::APSE Stacking connector with 25 positions dispersed in 2 rows. The connector height is 0.250" (6.35 mm).
3800520004
CIN::APSE Stacking connector with 25 positions dispersed in 2 rows, connector height is 0.125" (3.18 mm).
3800520005
CIN::APSE Stacking connector with 25 positions dispersed in 2 rows. The connector height is 0.250" (6.35 mm).
3800520013
CIN::APSE Stacking connector with 51 positions dispersed in 2 rows. The connector height is 0.125" (3.18 mm).
3800520014
CIN::APSE Stacking connector with 51 positions dispersed in 2 rows. The connector height is 0.250" (6.35 mm).
3800520016
CIN::APSE Stacking connector with 51 positions dispersed in 2 rows. The connector height is 0.125" (3.18 mm).
3800520017
CIN::APSE Stacking connector with 51 positions dispersed in 2 rows. The connector height is 0.250" (6.35 mm).
3800520038
CIN::APSE Stacking connector with 249 positions dispersed in 5 rows. The connector height is 0.277" (7.04 mm).
3800520042
CIN::APSE Stacking connector with 249 positions dispersed in 5 rows. The connector height is 0.277" (7.04 mm).
3900520008
CIN::APSE Stacking connector with 166 positions dispersed in 5 rows. The connector height is 0.277" (7.04 mm).
3900520017
CIN::APSE Stacking connector with 83 positions dispersed in 5 rows. The connector height is 0.277" (7.04 mm) and attaches to a PCB or components using 2x #4 Thru Holes (Ø 0.124”) for fasteners. Positioning features are located on the connector. The compression contacts bond to gold plated pads on the corresponding PCB or component.
3180299351

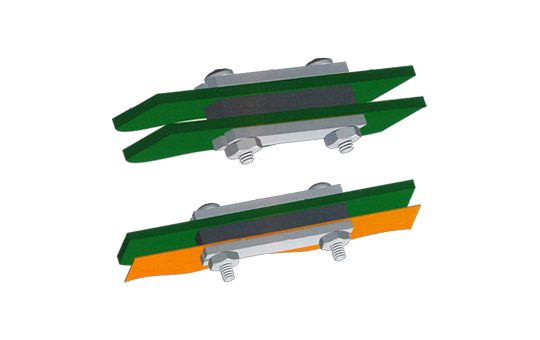

CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.095 in.
3180299352
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.155 in.
3180299353
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.215 in.
3180299354
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.095 in.
3180299355
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.155 in.
3180299356
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.215 in.
