3800520017 Stacking Connectors
CIN::APSE Stacking connector with 51 positions dispersed in 2 rows. The connector height is 0.250" (6.35 mm).
Stock Check
Select Country:
Albania
Argentina
Australia
Austria
Belgium
Bolivia
Bosnia and Herzegovina
Brazil
Bulgaria
Canada
Chile
China
Colombia
Costa Rica
Croatia
Cyprus
Czechia
Denmark
Dominican Republic
Ecuador
El Salvador
Estonia
Finland
France
Germany
Greece
Guatemala
Honduras
Hong Kong
Hungary
India
Ireland
Israel
Italy
Japan
Kosovo
Latvia
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Montenegro
Netherlands
New Zealand
North Macedonia
Norway
Panama
Peru
Philippines
Poland
Portugal
Puerto Rico
Romania
Russia
Serbia
Singapore
Slovakia
Slovenia
South Africa
South Korea
Spain
Sweden
Switzerland
Taiwan
Thailand
Turkey
United Kingdom
Uruguay
USA
Features & Specifications
| Connector Type | Stacking Compression |
| No. of Positions | 51 |
| Rows | 2 |
| Fastener | 2x no.2 Thru Holes (dia. 0.090in) |
| Alignment | Holes |
| Termination Type | Compression |
| Min Compression Force (kg) | 3.6 |
| Min Compression Force (lb) | 8.0 |
| Max Mating Cycles | 100 |
| Height (mm) | 6.35 |
| Height (in) | 0.250 |
| Operating Temp. Range (°C) | -55 to 125 |
| Operating Temp. Range (°F) | -65 to 255 |
| Current (A) | 3 |
| Contact Resistance (mOhm) | 8 |
| Withstanding Voltage | 500 VDC @ sea level |
| Inductance | <2 nH |
| Contact Material | Molybdenum alloy |
| Contact Finish | Gold |
| Insulation Material | Ultem |
| Brand | Cin::APSE |
Compatible Products with 3800520017
Relationship
Category
Accessories
3180299354
Hardware
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.095 in.
Accessories
3180299355
Hardware
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.155 in.
Accessories
3180299356
Hardware
CIN::APSE Stacking Hardware includes two insulated compression plates and fastening hardware to be used with CIN::APSE Stacking connectors. The maximum stack-up height for the PCBs and Stacking Connector is 0.215 in.
Mating
4631533094
Jumpers and Assemblies

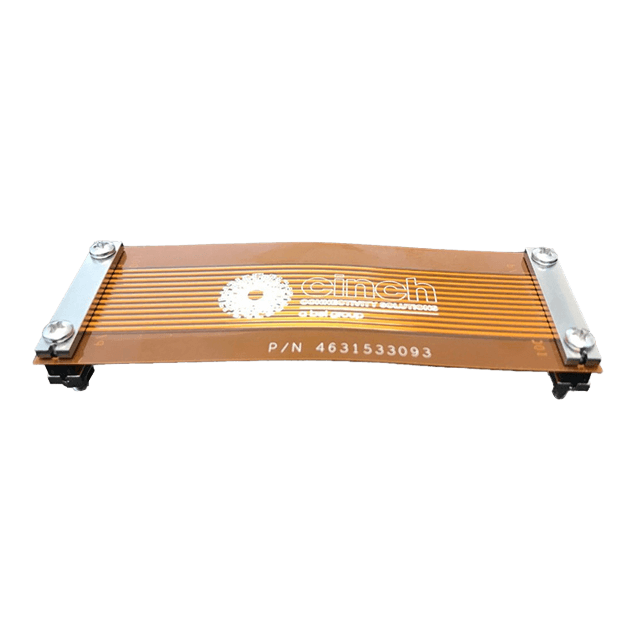

Flex PCB Jumper | 51 Positions | Used with CIN::APSE stacking connectors
