RF & Microwave Attenuators
Cinch’s attenuators are designed to reduce the power of RF and microwave signals without distorting them, ensuring optimal signal levels in RF systems. Engineered for high performance, they are ideal for applications that require accurate signal control and system protection, such as system or lab testing.
Product Resources
Attribute Filters
Attenuation value (dB)
Series Side 1
Series Side 2
Gender 1
Gender 2
Max Frequency (GHz)
Body Material
Body Finish
Power (W)
Qualification
984 Products
Show Filters
Hide Filters
| Product | Attenuation value (dB) | Series Side 1 | Series Side 2 | Gender 1 | Gender 2 | Max Frequency (GHz) | Body Material | Body Finish | Power (W) | Min Frequency (GHz) | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3, 6, 10, 20 | N | N | Male | Female | 18 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 3, 6, 10, 20 | 7mm | 7mm | Male | Female | 18 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 3, 6, 10, 20 | SMA | SMA | Male | Female | 18 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 0 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 1 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 2 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 3 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 4 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 5 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 6 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 7 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 8 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 9 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 10 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 15 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 20 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 30 | SMA | SMA | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 1 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 2 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 3 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 4 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 5 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 6 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 7 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard | |
| 8 | N | N | Male | Female | 12.4 | Stainless Steel | Passivated | 2 | DC | Standard |
Drawing

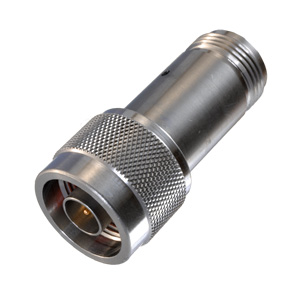

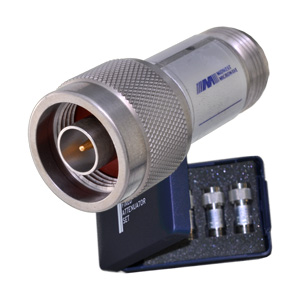

N Attenuator
Calibrated Set
2 Watt
Passivated Finish
3, 6, 10, & 20dB
DC-18 GHz
Calibrated Set
2 Watt
Passivated Finish
3, 6, 10, & 20dB
DC-18 GHz

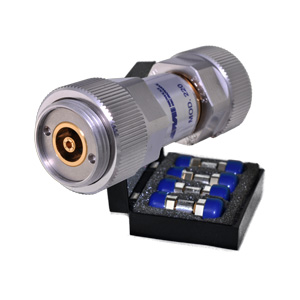

7mm Attenuator
Calibrated Set
2 Watt
Passivated Finish
3, 6, 10 & 20dB
DC-18 GHz
Calibrated Set
2 Watt
Passivated Finish
3, 6, 10 & 20dB
DC-18 GHz

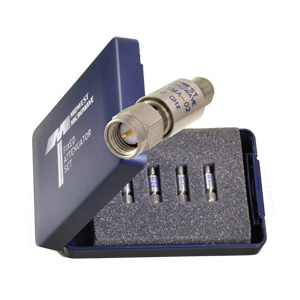

SMA Attenuator
Calibrated Set
2 Watt
Passivated Finish
3, 6, 10 & 20dB
DC-18 GHz
Calibrated Set
2 Watt
Passivated Finish
3, 6, 10 & 20dB
DC-18 GHz

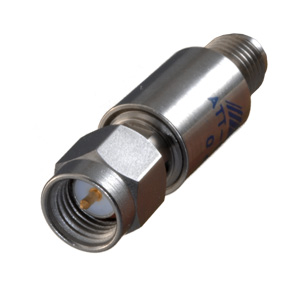

SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
0dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
0dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
1dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
1dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
2dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
2dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
3dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
3dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
4dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
4dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
5dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
5dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
6dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
6dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
7dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
7dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
8dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
8dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
9dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
9dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
10dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
10dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
15dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
15dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
20dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
20dB
DC-12.4 GHz
SMA Miniature Attenuator
Male/Female
2 Watt
Passivated Finish
30dB
DC-12.4 GHz
Male/Female
2 Watt
Passivated Finish
30dB
DC-12.4 GHz
