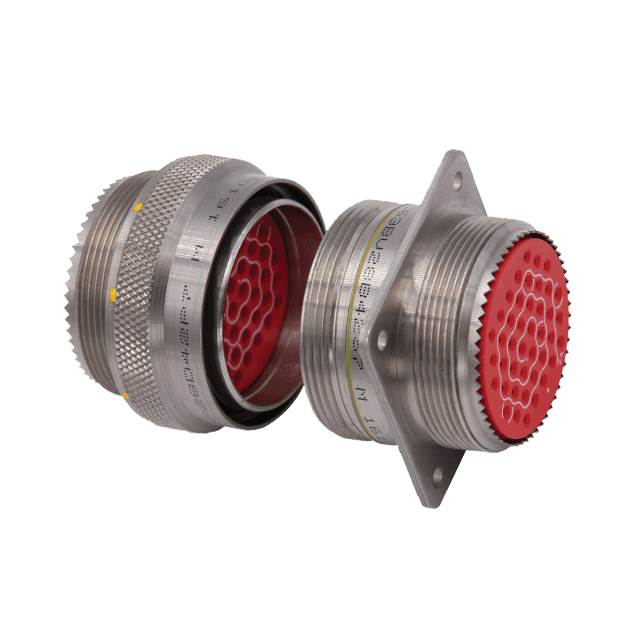

Boeing BACC63BV Series Connectors
ConnectorsThe Omega BACC63BV Series connectors are part of the CN0967 Series, featuring vibration-resistant threaded receptacle connectors. These connectors maintain the MIL-C-26500 mating interface and are qualified to the Boeing BACC63BV specification. Designed for high reliability and performance, they are ideal for use in aerospace and military applications, where secure and durable connections are critical.
Options and Variations
The BACC63BV Circular Connector comes in various configurations to meet diverse application needs:- Shell Sizes:Available in sizes 8, 10, 12, 14, 16, 18, 20, 22, 24, and 28.
- Mounting Style:Offers square flange or square flange with clinch nuts.
- Contact Styles:Offers pin contact or socket contact.
- Materials:Shells made from aluminum or stainless steel with finishes such as anodized, nickel-plated, or cadmium over nickel.
- Environmental Sealing:Features include sealing against fluids and dust.
- Special Attributes:Optional features include high-temperature resistance and EMI shielding.
Find and configure your perfect connector below:
Configure Part
Use the dropdown form below to configure this part to fit your exact specifications.
All fields are required.
Current Configuration:
Use the form to start configuring this part
Shell Size
Not Selected
Environmental Class
Not Selected
Insert Arrangement
Not Selected
Contact Style
Not Selected
Alternate Shell Positions
Not Selected
