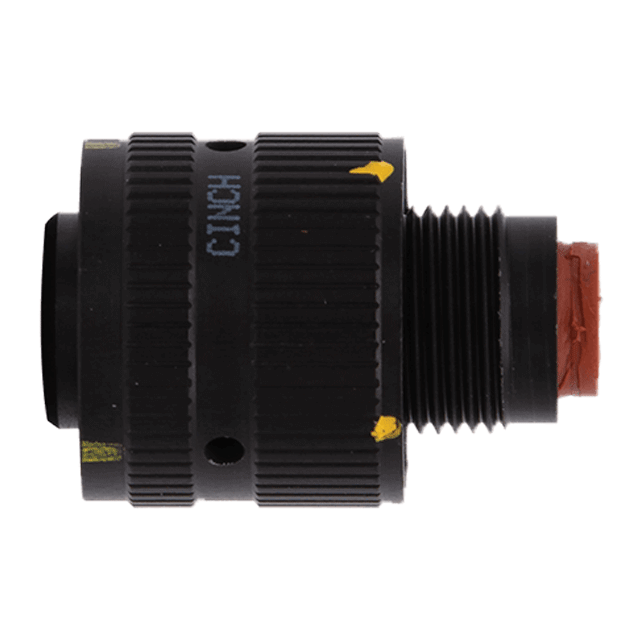

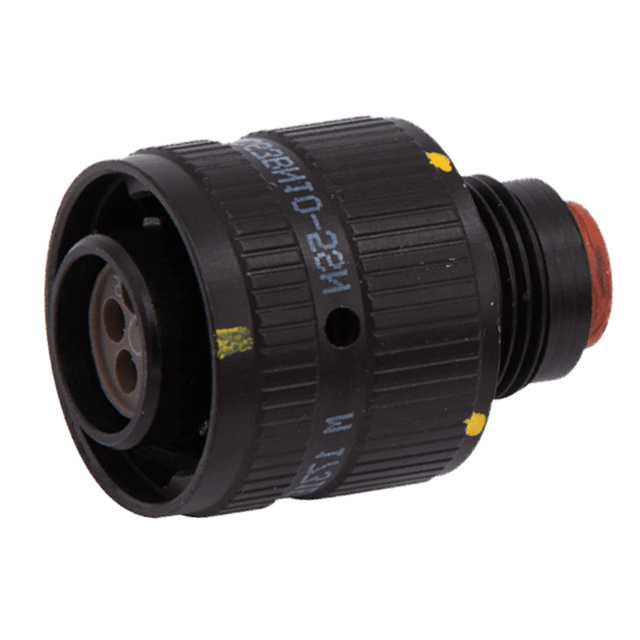

C0909A MMB Series - Vibration-Proof Plug Connector
ConnectorsThe Omega C0909A Series connectors are high-reliability connectors designed to meet MIL-DTL-26500 specifications, qualified to Boeing specifications for general-purpose and unique application challenges. These connectors are built to withstand extreme shock, exposure, and vibration, making them ideal for demanding environments in aerospace and industrial applications.
Options and Variations
- Shell Sizes:Available in sizes 8, 10, 12, 14, 16, 18, 20, 22, and 24.
- Coupling Styles:Bayonet coupling style for secure and quick connections.
- Contact Styles:Pin and socket contacts, available with crimp termination, as well as gold plating.
- Materials:The shell is made up of either high-strength aluminum alloy or composite materials, which are available with a non-conductive black anodized finish.
- Environmental Sealing:Available with viton or silicone inserts providing robust environmental sealing.
Special Attributes:
- Mounting Options:Straight plug configurations.
- Durability:Designed for 500 mating cycles, withstanding temperatures from -55°C to +200°C, and 96-hour salt spray exposure.
- Electrical Capability:Insulation resistance of 5000 megohms.
Configure Part
Use the dropdown form below to configure this part to fit your exact specifications.
All fields are required.
Current Configuration:
Use the form to start configuring this part
Shell Size
Not Selected
Environmental Class
Not Selected
Insert Arrangement
Not Selected
Contact Style
Not Selected
Alternate Shell Positions
Not Selected
Order Code (Deviations)
Not Selected
