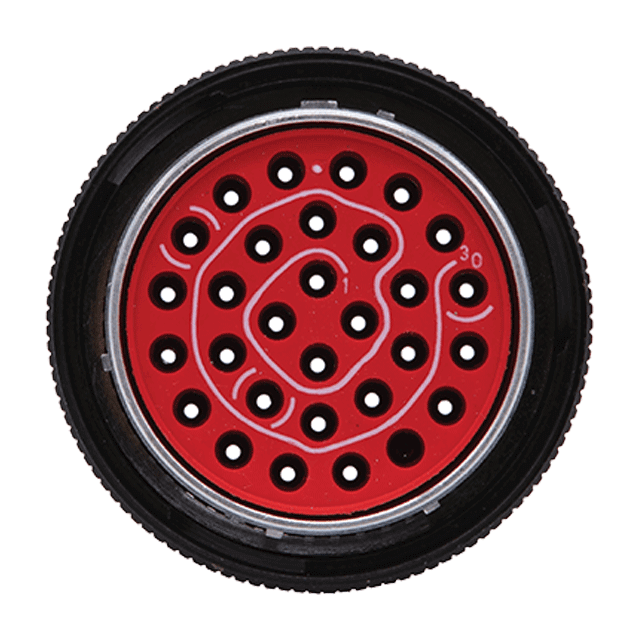

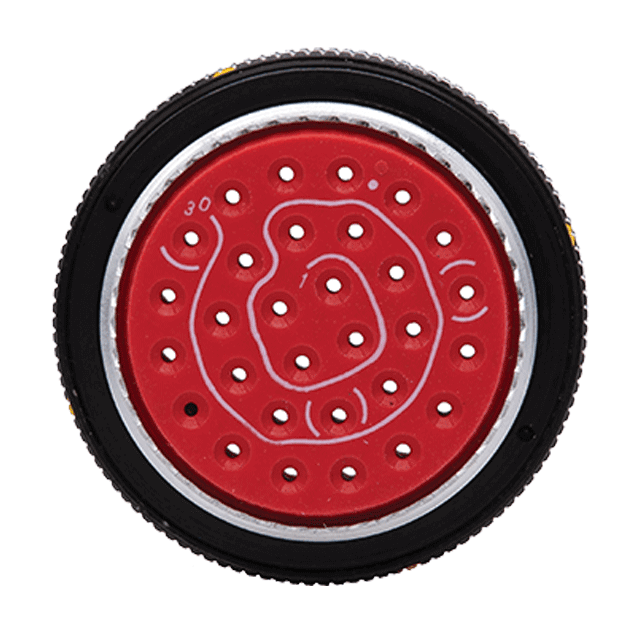

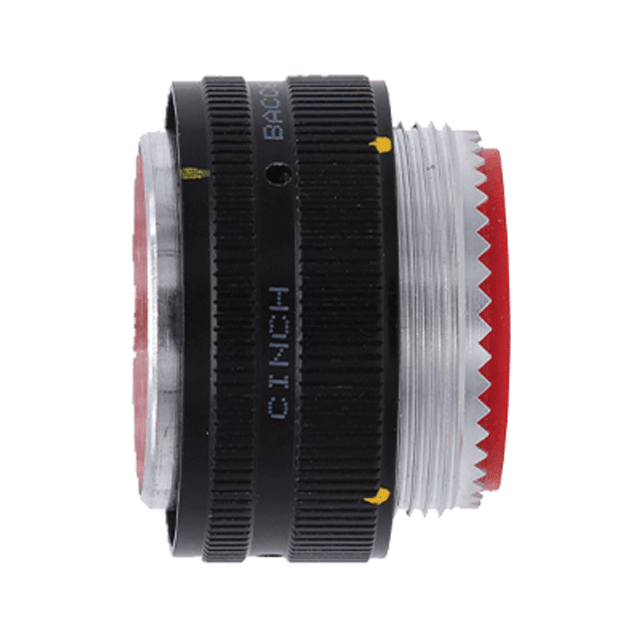

CN1020 Series - Vibration-Proof Plug Connector
ConnectorsThe Omega CN1020 Series connectors are designed to meet MIL-DTL-26500 specifications, ensuring high reliability and performance in demanding applications, including aerospace and industrial sectors. These connectors are qualified to Boeing BACC63CB specification, addressing general-purpose requirements and unique challenges such as shielding, environmental sealing, fluid resistance, and vibration.
Options and Variations
- Shell Sizes: Available in eleven shell sizes; 8, 10, 12, 14, 16, 18, 20, 22, 24, and 28.
- Coupling Styles:Bayonet coupling style for quick and secure connections.
- Contact Styles:Includes crimp pin contacts with front release, for easy installation and maintenance. Contact configurations vary, including options like less contacts, 8, 14, 24, and 39 contacts.
- Materials:Constructed from aluminum alloy for lightweight strength, with finishes such as olive drab chromate over cadmium, electroless nickel, and black anodized for corrosion resistance.
- Environmental Sealing:Build to endure a wide temperature range, while keeping out moisture and sea salt spray for 96 hours, and withstanding high vibration and shock.
Special Attributes:
- Mounting Options:Straight plug configurations.
- Durability:Rated for 500 mating cycles for bayonet couplings.
- Electrical Performance:High insulation resistance of 5000 megohms and dielectric strength of 1500 volts VAC RMS.
Configure Part
Use the dropdown form below to configure this part to fit your exact specifications.
All fields are required.
Current Configuration:
Use the form to start configuring this part
Series Modification
Not Selected
Shell Size
Not Selected
Environmental Class
Not Selected
Insert Arrangement
Not Selected
Contact Style
Not Selected
Alternate Shell Positions
Not Selected
Order Code (Deviations)
Not Selected
