134-1010-003 RF & Microwave Adapters
134-1010-003
left chevron icon right chevron icon

Active

134-1010-003 Adapters

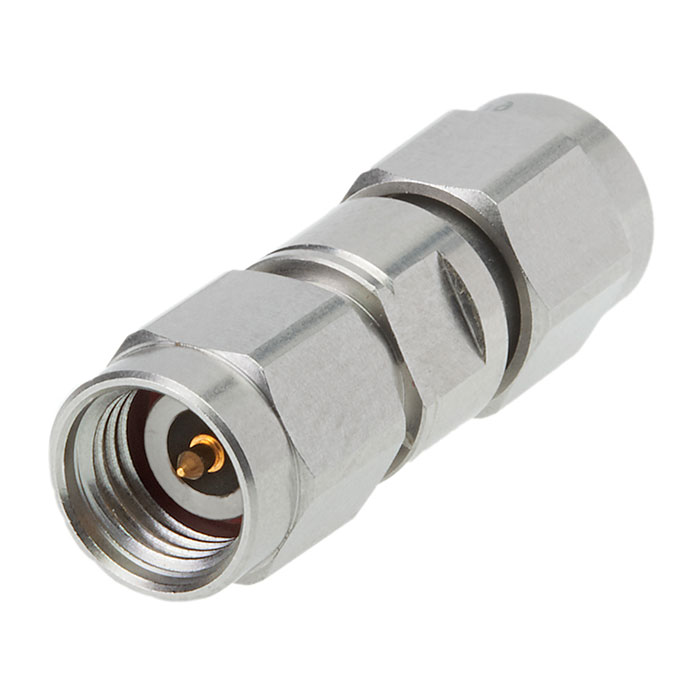

Adapter Assembly | 2.92mm Plug to SMA Plug
resource icon View Drawing

Stock Check

quote icon Request Quote
Specifications
active icon inactive icon Specs
Resources
active icon inactive icon Resources
Technical Support
active icon inactive icon Technical Support

Features & Specifications

Type Standard
Series Side 1 2.92mm
Series Side 2 SMA
Gender Side 1 Plug
Gender Side 2 Plug
Max Frequency (GHz) 26.5
Impedance (Ohms) 50
Body Style Straight
Body Material Stainless Steel
Body Finish Passivated
Contact Plating Gold
Brand Johnson

Compatible Products with 134-1010-003

141-0000-929
Tools 141-0000-929 Tools Precision Torque wrench | 8 in-lbs | For 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA (Stainless steel connectors)
View Product
141-0000-930
Tools 141-0000-930 Tools Precision Torque wrench | 5 in-lbs | For SMA (Brass connectors)
View Product
134-1019-381
Tools 134-1019-381 Tools UMC Inspection tool for Cable Assembly
View Product
