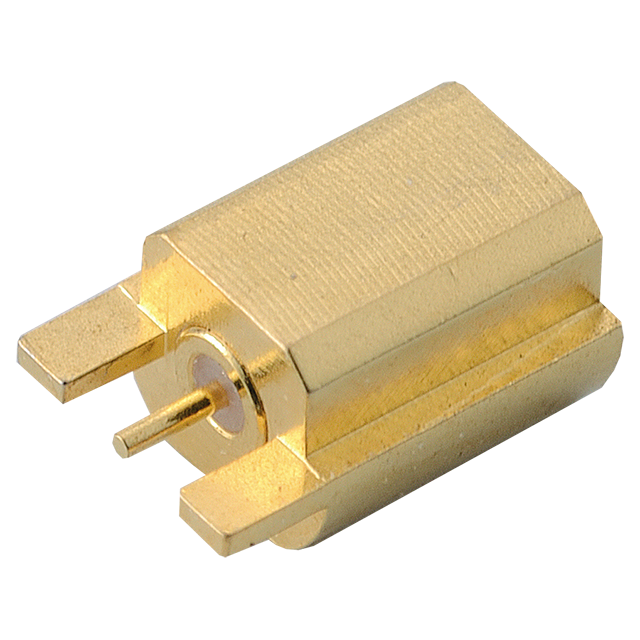

Features & Specifications
| Series | SMP3 |
| Type | Standard |
| Termination Type | Solder |
| Termination Style | Receptacle |
| Gender | Plug |
| Mounting Style | End Launch |
| Body Style | Straight |
| Body Material | Beryllium Copper |
| Body Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Insulator | PTFE |
| Max Frequency (GHz) | 50 |
| Durability (Cycles Min) | 100 |
| Operating Temp. Range (°C) | -65 to +165 |
| Impedance (Ohms) | 50 |
| Working Voltage (Vrms) | 80 |
| Insulation Resistance (mOhms Min) | 3500 |
| Insertion Loss (dB Max) | 0.49 |
| Number of Ports | 1 |
| Interface | Full Detent |
| Brand | Johnson |
