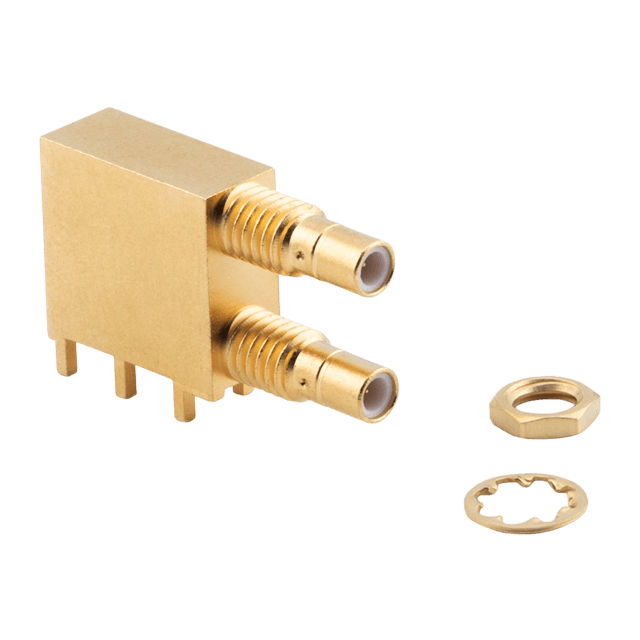

Features & Specifications
| Series | SMB |
| Type | Standard |
| Termination Type | Solder |
| Termination Style | Printed Circuit Board |
| Gender | Jack |
| Mounting Style | Bulkhead Mount |
| Body Style | Right Angle |
| Body Material | Brass |
| Body Finish | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Insulator | PTFE |
| Max Frequency (GHz) | 4 |
| Durability (Cycles Min) | 500 |
| Operating Temp. Range (°C) | -65 to +165 |
| Impedance (Ohms) | 50 |
| Working Voltage (Vrms) | 335 |
| Insulation Resistance (mOhms Min) | 1000 |
| Number of Ports | 1 |
| Leg Length (mm) | 2.6 |
| Leg Length (in) | 0.085 |
| Brand | Johnson |
