145-0711-832 RF & Microwave Connectors
145-0711-832
145-0711-832
left chevron icon right chevron icon

145-0711-832

Connectors

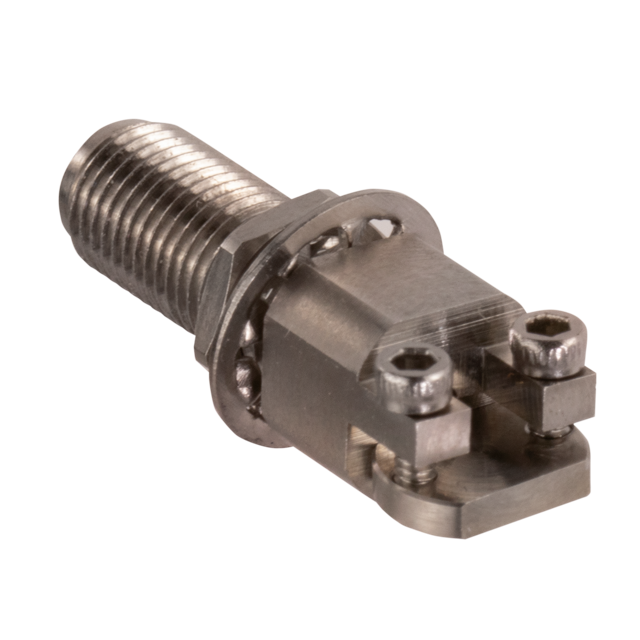

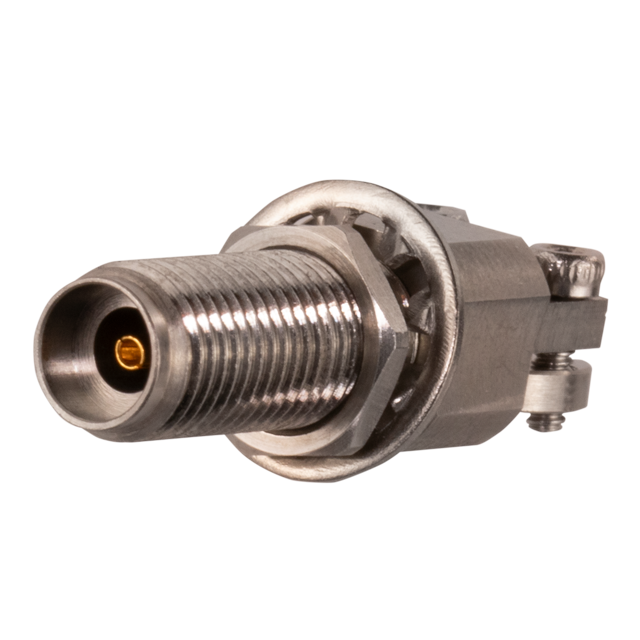

2.92mm Jack | Bulkhead End Launch | Narrow Profile

Buy Now

Checking availability...
Brand Johnson
Series 2.92mm
Type Narrow Profile
Termination Type Solderless
Termination Style Receptacle
Gender Jack
Mounting Style End Launch
Body Style Straight
Body Material Stainless Steel
Body Finish Stainless Steel
Contact Material Beryllium Copper
Contact Plating Gold
Insulator PEI
Max Frequency (GHz) 40
Durability (Cycles Min) 500
Operating Temp. Range (°C) -65 to +165
Impedance (Ohms) 50
Working Voltage (Vrms) 335
Insulation Resistance (mOhms Min) 5000
Number of Ports 1
