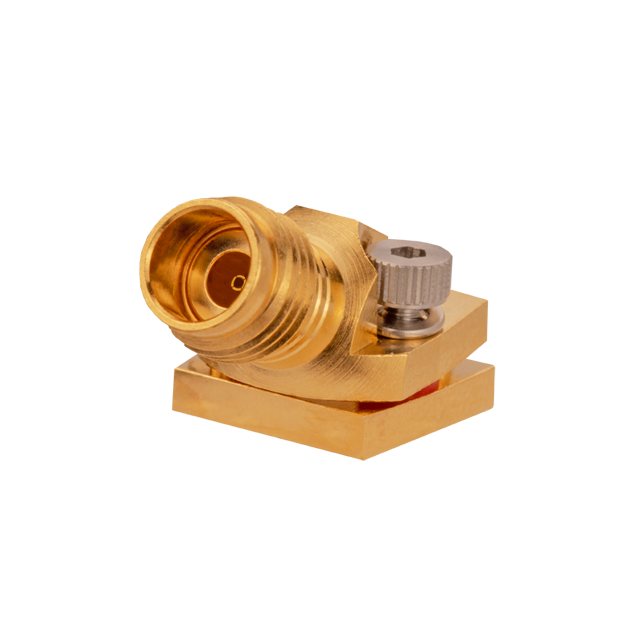

Features & Specifications
| Series | 2.4mm |
| Type | Angled |
| Termination Type | Solderless |
| Termination Style | Printed Circuit Board |
| Gender | Jack |
| Mounting Style | PCB Mount |
| Body Style | 30º Angle |
| Body Material | Brass |
| Body Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Insulator | PTFE |
| Max Frequency (GHz) | 50 |
| Durability (Cycles Min) | 500 |
| Operating Temp. Range (°C) | -55 to +85 |
| Impedance (Ohms) | 50 |
| Working Voltage (Vrms) | 400 |
| Insulation Resistance (mOhms Min) | 5000 |
| Insertion Loss (dB Max) | 0.85 |
| Number of Ports | 1 |
| Brand | Johnson |
Compatible Products with 147-0791-301
Tools
141-0000-929
Tools
Precision Torque wrench | 8 in-lbs | For 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA (Stainless steel connectors)
