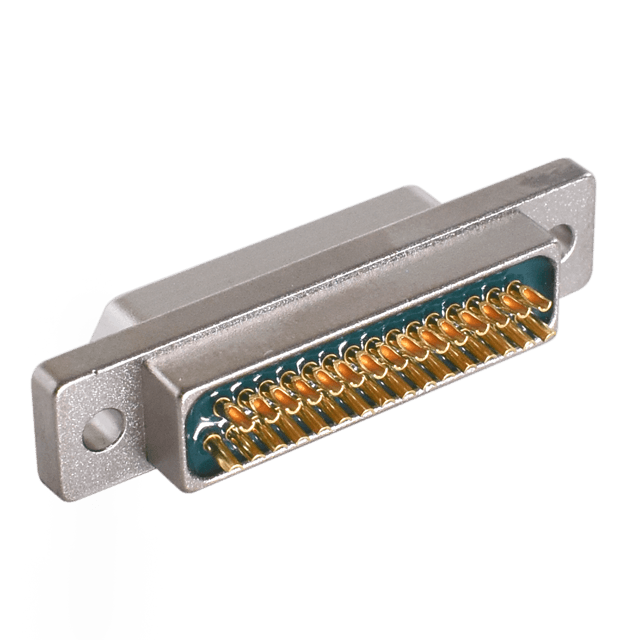

DCCM31PSBN

Name: DCCM31PSBN
Brand: Dura-Con
SKU: DCCM31PSBN

Connectors

View Compatible Products

Request Quote

Stock Check

Specifications

Specs

3D Model

Resources

Technical Support

Features & Specifications

Brand	Dura-Con
Connector Style	Commercial
D-Shape Type	Micro-D
Connector Type	Plug
No. of Positions	31
Shell Material	Aluminum alloy
Gender	Male
Shell Finish	Electroless Nickel
Current (A)	3
Profile	Standard
Termination Type	Solder Cup
Contact Resistance (mOhm)	8
Insulation Material	Diallyl Phthalate, Glass-Reinforced, Thermoset
Mounting Hardware	No Hardware
Operating Temp. Range (°C)	-55 to 135
Operating Temp. Range (°F)	-65 to 275
Contact Material	Copper alloy
Contact Finish	Gold
Contact Insertion Force (gm)	170
Contact Insertion Force (oz)	6
Contact Withdrawal Force (gm)	14
Contact Withdrawal Force (oz)	0.5
Withstanding Voltage	600 VAC RMS @ sea level
Max Mating Cycles	500
