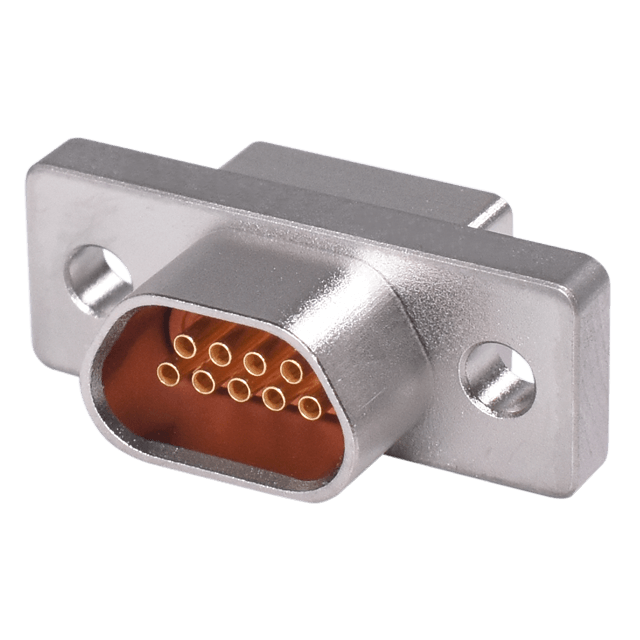

MIL-DTL-83513 Metal Shell Connector | Socket | 9 Positions | Shell Finish - Nickel | Female | Solder Cup

Stock Check

Features & Specifications

Brand Dura-Con
Connector Style MIL-DTL-83513
D-Shape Type Micro-D
Connector Type Socket
No. of Positions 9
Shell Material Aluminum alloy
Gender Female
Shell Finish Electroless Nickel
Current (A) 3
Profile Standard
Termination Type Solder Cup
Contact Resistance (mOhm) 8
Insulation Material Glass filled, Polyester
Mounting Hardware No Hardware
Operating Temp. Range (°C) -55 to 125
Operating Temp. Range (°F) -65 to 255
Contact Material Copper alloy
Contact Finish Gold
Contact Insertion Force (gm) 170
Contact Insertion Force (oz) 6
Contact Withdrawal Force (gm) 14
Contact Withdrawal Force (oz) 0.5
Withstanding Voltage 600 VAC RMS @ sea level
Max Mating Cycles 500
