DIN 41612 Connectors
Cinch AIM Cambridge DIN connectors are board mounted multi pin connectors used for connecting PCB to PCB, often daughtercard to backplane. These connectors meet the requirements of DIN 41612 and IEC 60603-2.
Product Resources
Attribute Filters
Orientation
Gender
Termination
Height (in)
6 Products
Show Filters
Hide Filters
| Product | Product Type | Number of Rows | Orientation | Gender | Termination | No. of Positions | Height (in) |
|---|---|---|---|---|---|---|---|
| DIN 41612 | 3 | Right Angle | Male | Solder Cup Contacts | 96 | 0.437 | |
| DIN 41612 | 3 | Panel Mount | Male | Press Fit | 96 | 0.457 | |
| DIN 41612 | 3 | Panel Mount | Male | Solder Cup Contacts | 96 | 0.457 | |
| DIN 41612 | 3 | Right Angle | Female | Solder Cup Contacts | 96 | 0.413 | |
| DIN 41612 | 3 | Panel Mount | Female | Press Fit | 96 | 0.457 | |
| DIN 41612 | 3 | Panel Mount | Female | Solder Cup Contacts | 96 | 0.457 |
Drawing

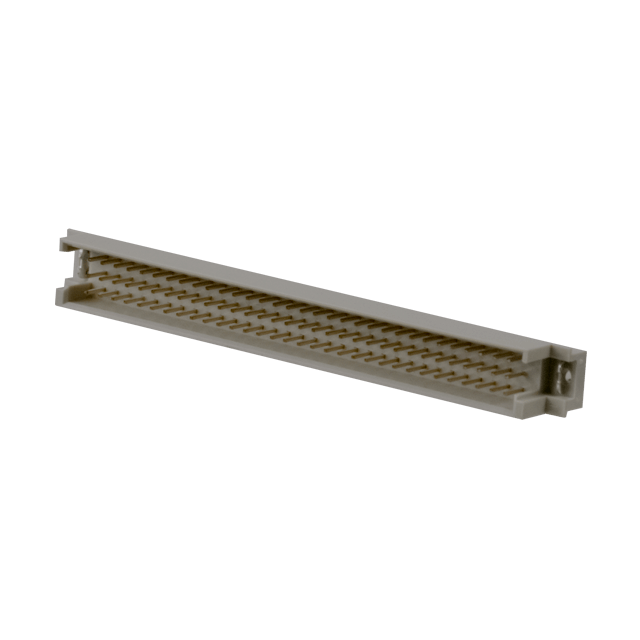

DIN 41612 plug, fully populated, 96 contacts, right angle PCB mounted, solder pins

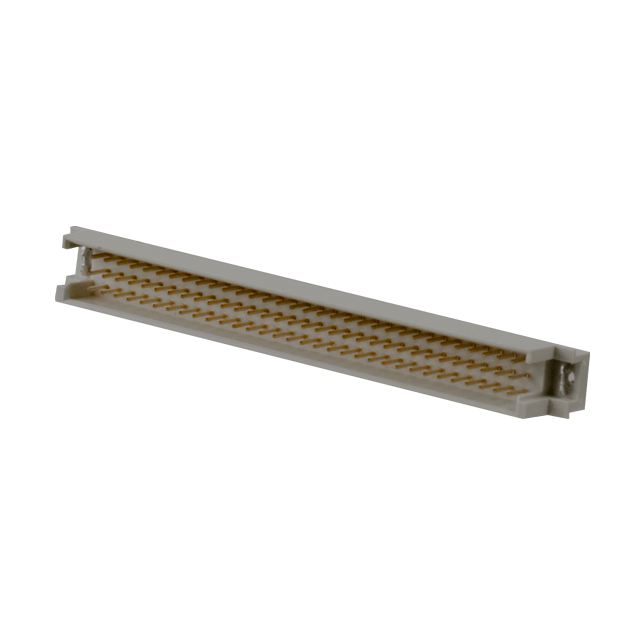

DIN 41612 plug, fully populated, 96 contacts, straight PCB mounted, press-fit pins

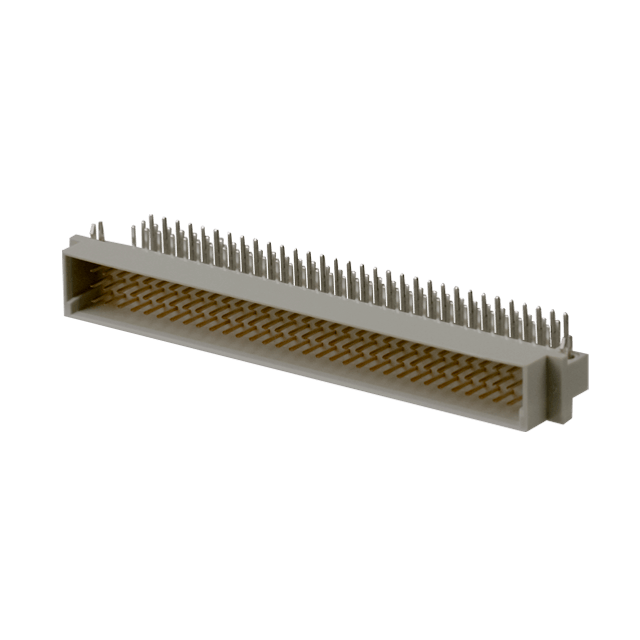

DIN 41612 plug, fully populated, 96 contacts, straight PCB mounted, solder pins
DIN 41612 socket, fully populated, 96 contacts, right angle PCB mounted, solder pins

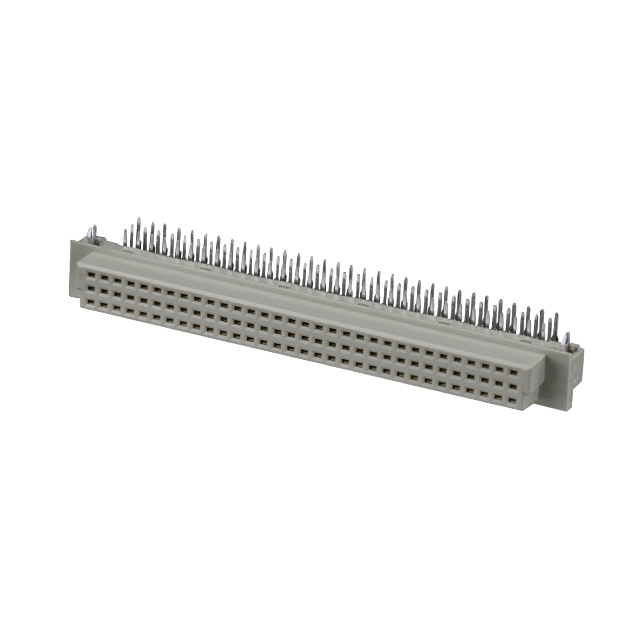

DIN 41612 socket, fully populated, 96 contacts, straight PCB mounted, press-fit pins

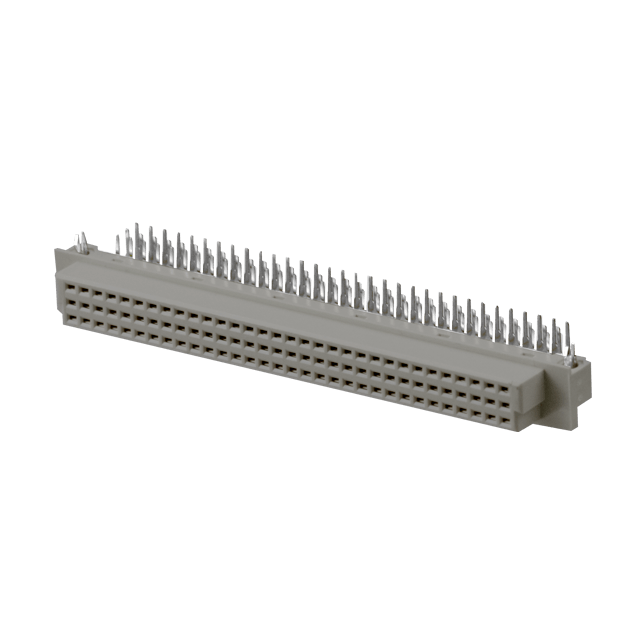

DIN 41612 socket, fully populated, 96 contacts, straight PCB mounted, solder pins
