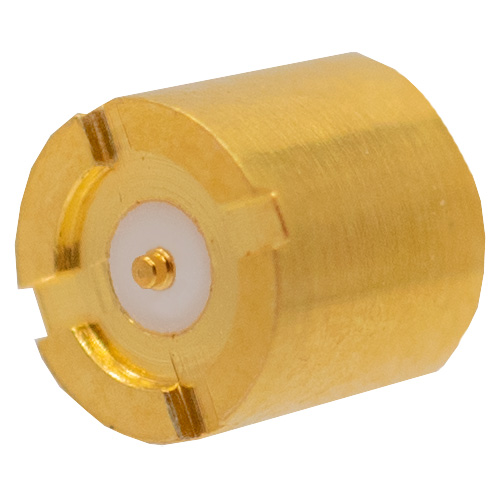

Features & Specifications
| Series | SMPM |
| Type | Standard |
| Termination Type | Solder |
| Termination Style | Printed Circuit Board |
| Gender | Plug |
| Mounting Style | PCB Mount |
| Body Style | Straight |
| Body Material | Beryllium Copper |
| Body Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Insulator | PTFE |
| Max Frequency (GHz) | 26.5 |
| Durability (Cycles Min) | 500 |
| Operating Temp. Range (°C) | -65 to +165 |
| Impedance (Ohms) | 50 |
| Working Voltage (Vrms) | 325 |
| Insulation Resistance (mOhms Min) | 5000 |
| Insertion Loss (dB Max) | 0.62 |
| Number of Ports | 1 |
| Interface | Smooth Bore |
| Brand | Johnson |
Compatible Products with 125-2701-221
