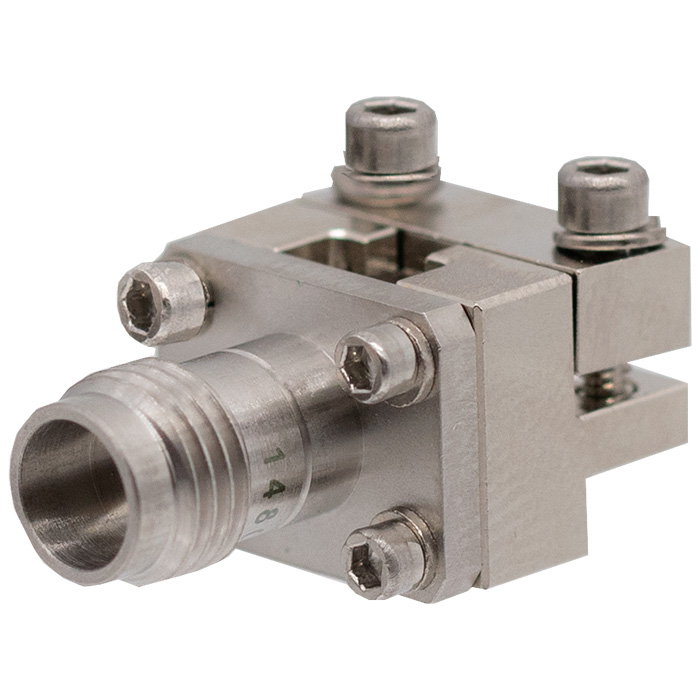

1.85mm End Launch Jack | Screw-on Type | Low profile of 0.375 inches | 0.005" Pin
Stock Check
Select Country:
Albania
Argentina
Australia
Austria
Belgium
Bolivia
Bosnia and Herzegovina
Brazil
Bulgaria
Canada
Chile
China
Colombia
Costa Rica
Croatia
Cyprus
Czechia
Denmark
Dominican Republic
Ecuador
El Salvador
Estonia
Finland
France
Germany
Greece
Guatemala
Honduras
Hong Kong
Hungary
India
Ireland
Israel
Italy
Japan
Kosovo
Latvia
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Montenegro
Netherlands
New Zealand
North Macedonia
Norway
Panama
Peru
Philippines
Poland
Portugal
Puerto Rico
Romania
Russia
Serbia
Singapore
Slovakia
Slovenia
South Africa
South Korea
Spain
Sweden
Switzerland
Taiwan
Thailand
Turkey
United Kingdom
Uruguay
USA
Features & Specifications
| Series | 1.85mm |
| Type | Standard |
| Termination Type | Solderless |
| Termination Style | Receptacle |
| Gender | Jack |
| Mounting Style | End Launch |
| Body Style | Straight |
| Body Material | Stainless Steel |
| Body Finish | Stainless Steel |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Insulator | PTFE |
| Max Frequency (GHz) | 67 |
| Durability (Cycles Min) | 500 |
| Operating Temp. Range (°C) | -55 to +125 |
| Impedance (Ohms) | 50 |
| Working Voltage (Vrms) | 335 |
| Insulation Resistance (mOhms Min) | 5000 |
| Number of Ports | 1 |
| Brand | Johnson |
Compatible Products with 148-0701-802
Tools
141-0000-929
Tools
Precision Torque wrench | 8 in-lbs | For 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA (Stainless steel connectors)
