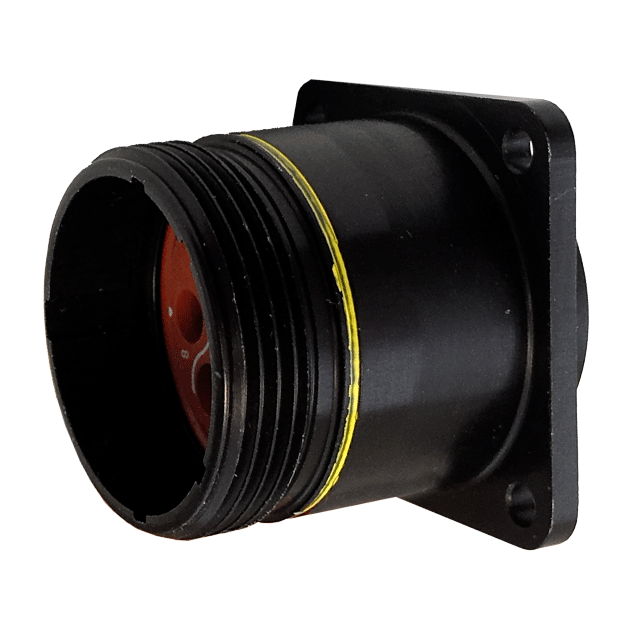

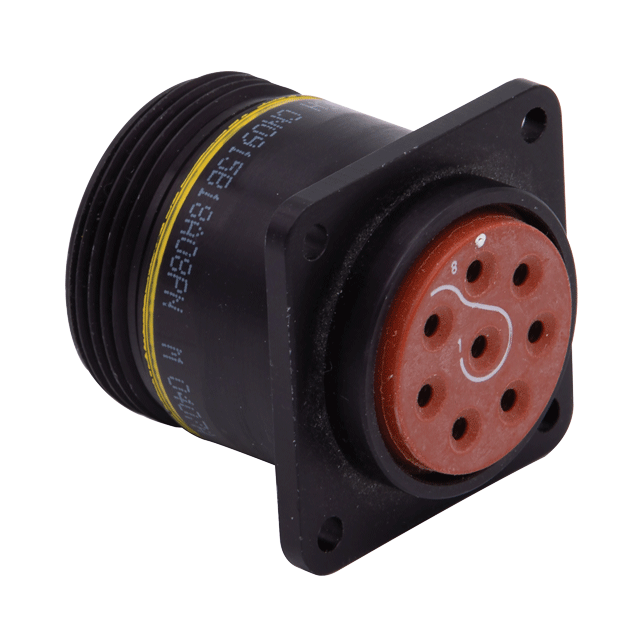

CN0915 Series - Limited Wiring Space Receptacle Connectors

CN0915 Series - Limited Wiring Space Receptacle Connectors

Shell Sizes: Available in nine shell sizes; 8, 10, 12, 14, 16, 18, 20, 22, and 24.
Coupling Styles: Offered in both bayonet and threaded coupling styles for secure and reliable connections.
Contact Styles: Includes crimp contacts with removable contacts for ease of installation and maintenance, as well as copper alloy with gold plating for high conductivity and corrosion resistance.
Materials: Available in either lightweight aluminum alloy or stainless steel, with various finishes such as anodized, electroless nickel, and cadmium over nickel.
Environmental Sealing: Built to endure vibration and shock resistance and keep out moisture.

Name: CN0915 Series - Limited Wiring Space Receptacle Connectors
Brand: Cinch Connectivity Solutions
SKU: CN0915 Series - Limited Wiring Space Receptacle Connectors

Commercial

Square flange mount receptacle designed for installations where rear body depth is restricted. Functionally equivalent to the standard C48 family (MIL-C-26500) with a reduced rear body profile to accommodate tight wiring harness routing. CRIM-LOK crimp front-release contacts, shell sizes 8–24, bayonet and threaded coupling. Available in anodized, electroless nickel and stainless steel finishes. Operating range −55°C to +200°C.
