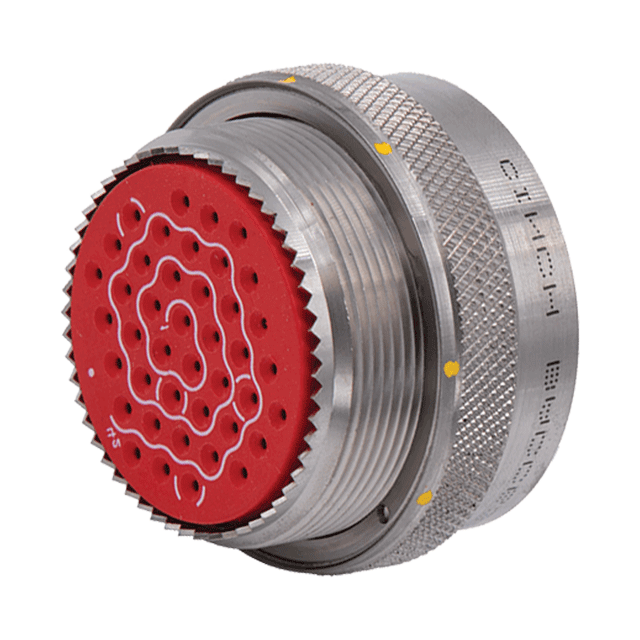

CN0966 Series - Self Locking Plug Connector
ConnectorsThe Omega CN0966 Series connectors are designed for high-performance applications requiring vibration resistance and environmental sealing. These connectors meet MIL-C-26500 specifications, making them suitable for use in demanding environments such as aerospace and military applications. They are engineered to provide reliable performance under extreme conditions, including shock, vibration, and exposure to harsh environments.
Options and Variations
- Shell Sizes: Available in eleven shell sizes; 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, and 28.
- Coupling Styles: Offered in threaded coupling style for secure and quick connections.
- Contact Styles: Offers pin insert or socket insert.
- Materials:Made from high-strength aluminum alloy or stainless steel for durability and resistance to corrosion, with finishes available in anodized aluminum, electroless nickel, and cadmium over nickel.
- Environmental Sealing:Is built to withstand high levels of vibration and shock, as well as keep out moisture and dust.
Special Attributes:
- Mounting Options: Suitable for panel mount and inline configurations.
- Durability: Rated for up to 500 mating cycles for bayonet couplings and 200 mating cycles for threaded couplings.
- Electrical Performance: High insulation resistance (5000 megohms) and dielectric strength (1500 volts VAC RMS).
Configure Part
Use the dropdown form below to configure this part to fit your exact specifications.
All fields are required.
Current Configuration:
Use the form to start configuring this part
Series Modification
Not Selected
Shell Size
Not Selected
Environmental Class
Not Selected
Insert Arrangement
Not Selected
Contact Style
Not Selected
Alternate Shell Positions
Not Selected
Order Code (Deviations)
Not Selected
