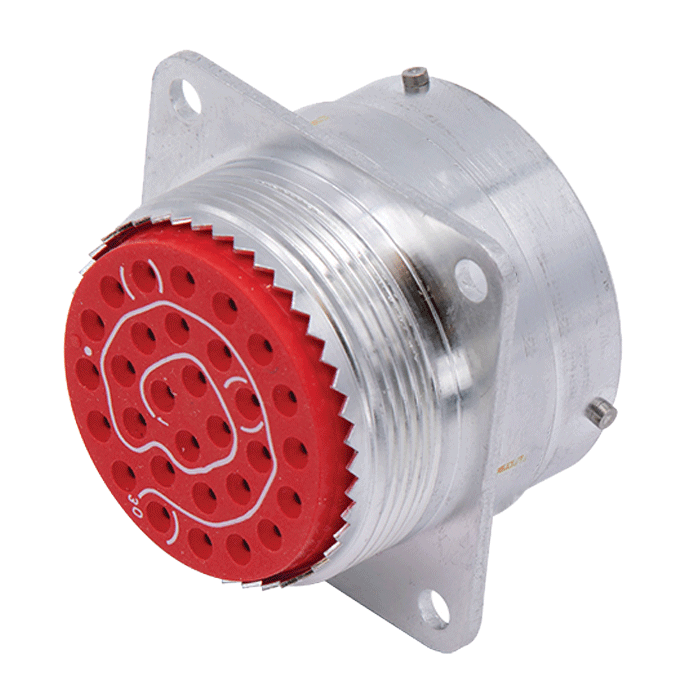

CN1021 Series - Vibration-Resistant Receptacle
ConnectorsThe Omega CN1021 Series connectors are designed to meet MIL-DTL-26500 specifications, providing high reliability for demanding aerospace and industrial applications. These connectors are qualified to Boeing specifications, addressing unique challenges such as shielding, environmental sealing, fluid resistance, and vibration resistance. They are ideal for use in environments where high durability and performance are required.
Options and Variations
- Shell Sizes:Available in nine shell sizes; 8, 10, 12, 14, 16, 18, 20, 22, 24, and 28.
- Coupling Styles:Available in threaded coupling style for secure and quick connections.
- Contact Styles:Offers pin insert or socket insert.
- Materials:Offered in aluminum alloy and composite materials with finishes such as, olive drab chromate over calcium, electroless nickel, and black anodized.
- Environmental Sealing:Has a wide temperature range, and is built to withstand moisture, sea salt spray, as well as vibration and shock resistance.
Special Attributes:
- Mounting Options:Wall mount receptacle configurations.
- Electrical Performance:High insulation resistance of 5000 megohms and dielectric strength.
Configure Part
Use the dropdown form below to configure this part to fit your exact specifications.
All fields are required.
Current Configuration:
Use the form to start configuring this part
Series Modification
Not Selected
Shell Size
Not Selected
Environmental Class
Not Selected
Insert Arrangement
Not Selected
Contact Style
Not Selected
Alternate Shell Positions
Not Selected
Order Code (Deviations)
Not Selected
