DCDA15PSB Connectors

Name: DCDA15PSB
Brand: Dura-Con
SKU: DCDA15PSB

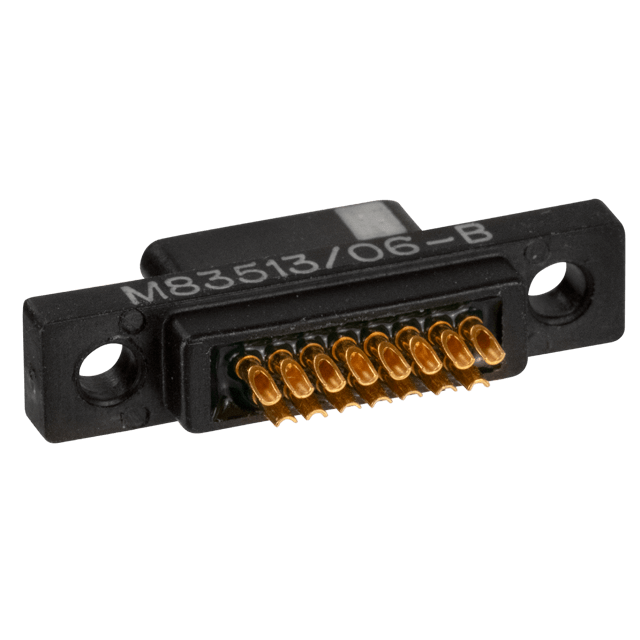

Cinch Dura-Con™ Micro-D economic and lightweight plastic shell connector | Plug | Positions 15 | No Hardware

View Compatible Products

View Drawing

Stock Check

Request Quote

Specifications

Specs

3D Model

Resources

Technical Support

Features & Specifications

Connector Style	Micro-D Commercial Plastic Shell
Connector Type	Plug
Gender	Male
No. of Positions	15
Shell Material	Glass filled - Polyester
Termination Type	Solder Cup
Insulation Material	Glass filled, Polyester
Mounting Hardware	No Hardware
Profile	Low
Shell Finish	Electroless Nickel
Operating Temp. Range (°C)	-55 to 135
Operating Temp. Range (°F)	-65 to 275
Current (A)	3
Contact Finish	Gold
Contact Material	Copper alloy
Contact Insertion Force (gm)	170
Contact Insertion Force (oz)	6
Contact Withdrawal Force (gm)	14
Contact Withdrawal Force (oz)	0.5
Contact Resistance (mOhm)	8
Max Mating Cycles	500
Withstanding Voltage	600 VAC RMS @ sea level
Brand	Dura-Con
