3D View
Active

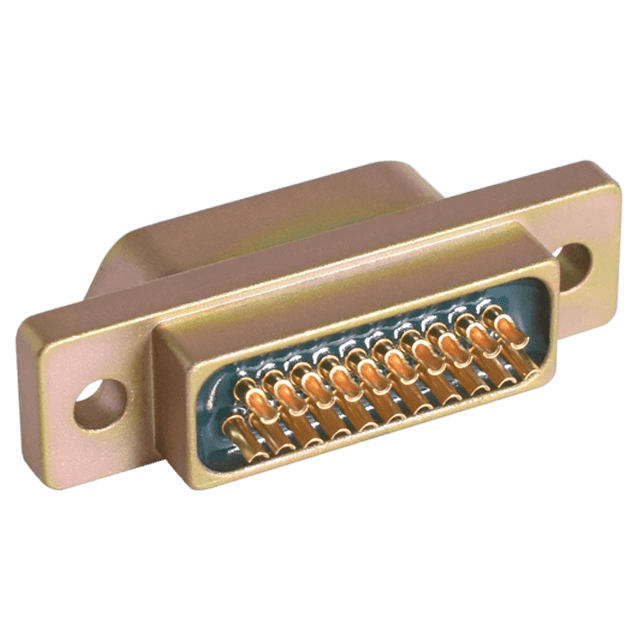

M83513/02-CC Connectors
MIL-DTL-83513 Metal Shell Connector | Socket | 21 Positions | Shell Finish - Cadmium | Female | Solder Cup
Stock Check
Select Country:
Albania
Argentina
Australia
Austria
Belgium
Bolivia
Bosnia and Herzegovina
Brazil
Bulgaria
Canada
Chile
China
Colombia
Costa Rica
Croatia
Cyprus
Czechia
Denmark
Dominican Republic
Ecuador
El Salvador
Estonia
Finland
France
Germany
Greece
Guatemala
Honduras
Hong Kong
Hungary
India
Ireland
Israel
Italy
Japan
Kosovo
Latvia
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Montenegro
Netherlands
New Zealand
North Macedonia
Norway
Panama
Peru
Philippines
Poland
Portugal
Puerto Rico
Romania
Russia
Serbia
Singapore
Slovakia
Slovenia
South Africa
South Korea
Spain
Sweden
Switzerland
Taiwan
Thailand
Turkey
United Kingdom
Uruguay
USA
Request Quote
Features & Specifications
| Connector Style | Micro-D MIL-DTL-83513 Metal Shell |
| Connector Type | Socket |
| Gender | Female |
| No. of Positions | 21 |
| Shell Material | Aluminum alloy |
| Termination Type | Solder Cup |
| Insulation Material | Glass filled, Polyester |
| Mounting Hardware | No Hardware |
| Profile | Standard |
| Shell Finish | Cadmium |
| Operating Temp. Range (°C) | -55 to 125 |
| Operating Temp. Range (°F) | -65 to 255 |
| Current (A) | 3 |
| Contact Finish | Gold |
| Contact Material | Copper alloy |
| Contact Insertion Force (gm) | 170 |
| Contact Insertion Force (oz) | 6 |
| Contact Withdrawal Force (gm) | 14 |
| Contact Withdrawal Force (oz) | 0.5 |
| Contact Resistance (mOhm) | 8 |
| Max Mating Cycles | 500 |
| Withstanding Voltage | 600 VAC RMS @ sea level |
| Brand | Dura-Con |
Compatible Products with M83513/02-CC
Relationship
Category
Accessories
DCDM21CS
Connector Saver
Connector Saver | 21 Positions | Aluminum alloy | Yellow Chromate over Cadmium | Thermoplastic, Glass-Reinforced
Accessories
DCBST21CN
Backshell
Dura-Con Backshell | 21 position | top entry - 0.219" | nickel plated | strain relief
Accessories
M83513/05-02
Jackscrew
Microminiature D-shaped Connector mounting hardware | Qualified (QPL) to MIL-DTL-83513 | Jackscrew | Low Profile | Recessed Hex | 2-56 Thread
Accessories
M83513/05-07
Jackpost
Microminiature D-shaped Panel mounting hardware | Qualified (QPL) to MIL-DTL-83513 | Jackpost | #2-56 Thread
Mating
M83513/01-CC
Connectors
MIL-DTL-83513 Metal Shell Connector | Plug | 21 Positions | Shell Finish - Cadmium | Male | Solder Cup
Related Products
M83513/02-CN
Connectors
MIL-DTL-83513 Metal Shell Connector | Socket | 21 Positions | Shell Finish - Nickel | Female | Solder Cup
Mating
M83513/03-C03C
Connectors
MIL-DTL-83513 Metal Shell Connector | Plug | 21 Positions | Shell Finish - Cadmium | Male | Wire Leads | Wire Type - PTFE Insulated | #26 AWG | Silver-Plated Copper Strands | M22759/11-26-() | 18.0" (457 mm) | Color Coded
Mating
M83513/03-C04C
Connectors
MIL-DTL-83513 Metal Shell Connector | Plug | 21 Positions | Shell Finish - Cadmium | Male | Wire Leads | Wire Type - PTFE Insulated | #26 AWG | Silver-Plated Copper Strands | M22759/11-26-() | 36.0" (914 mm) | Color Coded
Accessories
M83513/05-05
Jackscrew
Microminiature D-shaped Connector mounting hardware | Qualified (QPL) to MIL-DTL-83513 | Jackscrew | Low Profile | Slotted | 2-56 Thread
Mating
M83513/10-C01CP
Connectors
MIL-DTL-83513 PCB Mounted Connector | Plug | 21 Positions | Shell Finish - Cadmium | Male | PCB Solder Pins | 0.109" (2.77 mm) Pin Length | Jackpost Attached
Mating
M83513/16-C01CP
Connectors
MIL-DTL-83513 PCB Mounted Connector | Plug | 21 Positions | Shell Finish - Cadmium | Male | PCB Solder Pins | 0.109" (2.77 mm) Pin Length | Jackpost Attached
Mating
M83513/22-C01CP
Connectors
MIL-DTL-83513 PCB Mounted Connector | Plug | 21 Positions | Shell Finish - Cadmium | Male | PCB Solder Pins | 0.109" (2.77 mm) Pin Length | Jackpost Attached
Related Products
M83513/04-C03C
Connectors
MIL-DTL-83513 Metal Shell Connector | Socket | 21 Positions | Shell Finish - Cadmium | Female | Wire Leads | Wire Type - PTFE Insulated | #26 AWG | Silver-Plated Copper Strands | M22759/11-26-() | 18.0" (457 mm) | Color Coded
Related Products

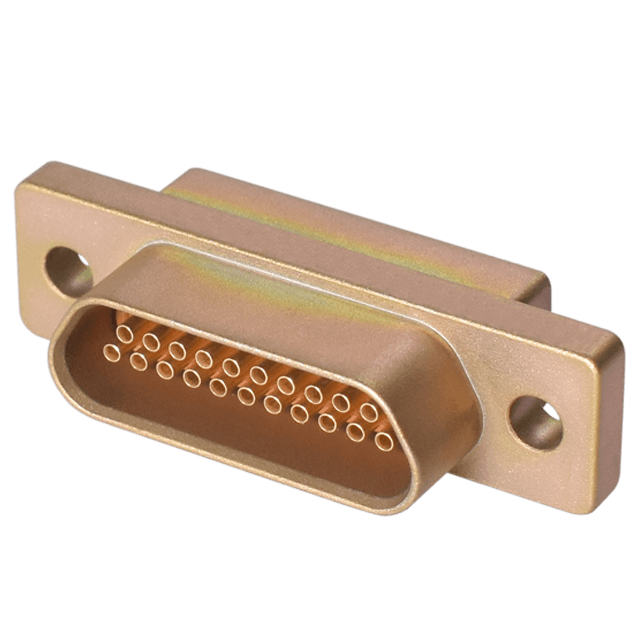

DCCM21SSB
Connectors
Cinch Dura-Con™ durable and EMI shielding aluminum metal shell connector | Socket | # of Positions 21 | Thermoset, Glass-Reinforced, Diallyl Phthalate | Female | Solder Cup | No Hardware
