SS-12300-001 M-Series Connectors

Name: SS-12300-001
Brand: Stewart Connector
SKU: SS-12300-001

M12 D-Code Connector | Vertical | Female | Panel Mount | IP68

Stock Check

Specs

Product Type	M12
Mounting Style	Cable Applied
Number of Ports	1
Orientation	Vertical
Connector Style	Front Panel Mount Receptacle
Gender	Female
Termination	Solder Cup Contacts
IP Rating	IP68
Shielding	Yes
Contact Plating Thickness	Flash
Brand	Stewart Connector
LED	No
Flange	No
No. of Contacts	4
Shell Plating	Nickel
Tail Length (in)	0.118
Coding/Keying	D

Clear Filters

Accessories SS-12400-011 Tooling & Accessories M12 Waterproof Vent Plug

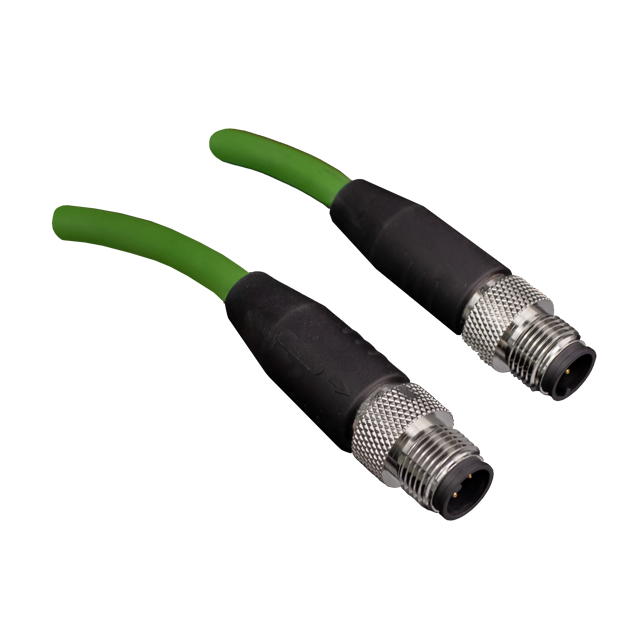

Mating BC-MADD010M M-Series Cable Assemblies M12 D-Code Cable Assembly | Cat6a | M12 D-Code to M12 D-Code | 1 M

Mating BC-MADD020M M-Series Cable Assemblies M12 D-Code Cable Assembly | Cat6a | M12 D-Code to M12 D-Code | 2 M

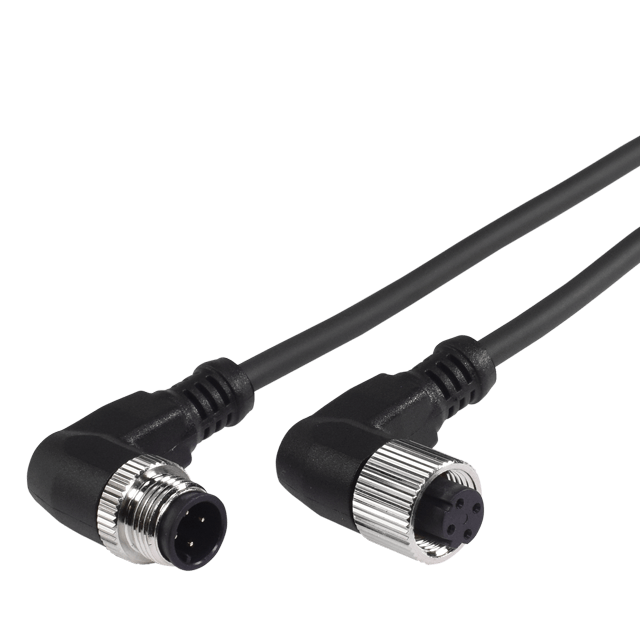

Mating BC-M12MD4RBFD4R005M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Female Right Angle Cable Assembly | 0.5M

Mating BC-M12MD4RBFD4R010M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Female Right Angle Cable Assembly | 1.0M

Mating BC-M12MD4RBFD4R020M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Female Right Angle Cable Assembly | 2.0M

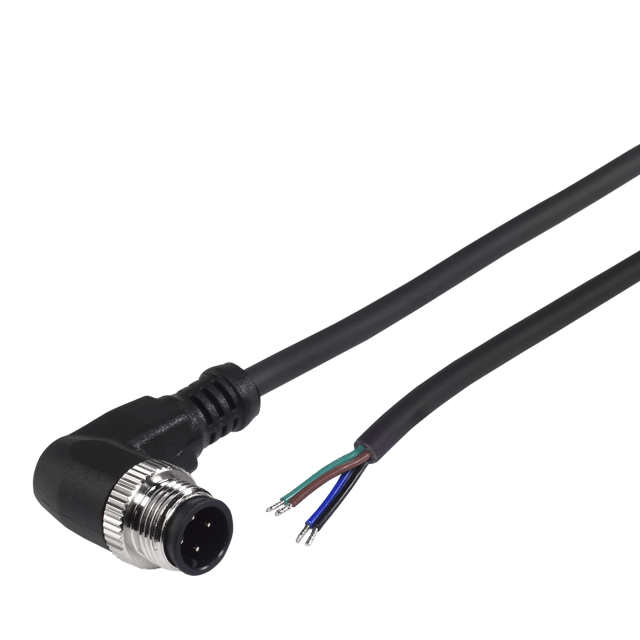

Mating BC-M12MD4RBP01005M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Pigtail Cable Assembly | 0.5M

Mating BC-M12MD4RBP01010M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Pigtail Cable Assembly | 1.0M

Mating BC-M12MD4RBP01020M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Pigtail Cable Assembly | 2.0M

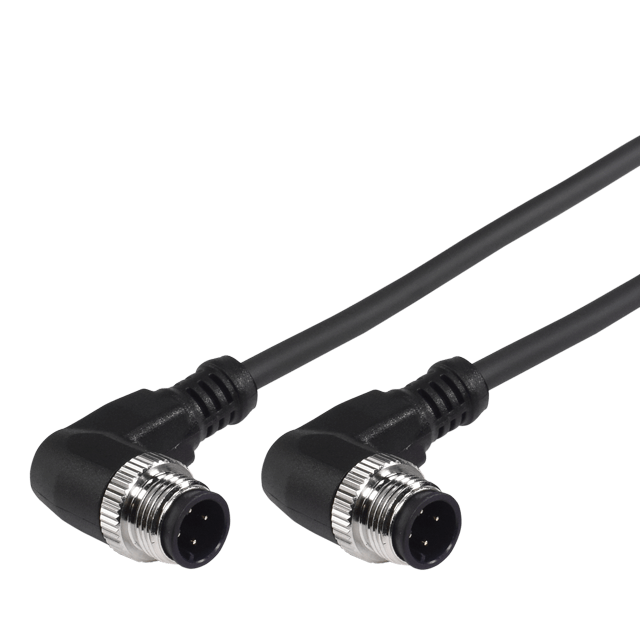

Mating BC-M12MD4RBMD4R005M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Male Right Angle Cable Assembly | 0.5M

Mating BC-M12MD4RBMD4R010M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Male Right Angle Cable Assembly | 1.0M

Mating BC-M12MD4RBMD4R020M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Male Right Angle Cable Assembly | 2.0M

Mating BC-M12MD4RBMD4R030M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Male Right Angle Cable Assembly | 3.0M

Mating BC-M12MD4RBFD4R030M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Female Right Angle Cable Assembly | 3.0M

Mating BC-M12MD4RBP01030M M-Series Cable Assemblies M12 D-Code | Male Right Angle to Pigtail Cable Assembly | 3.0M
