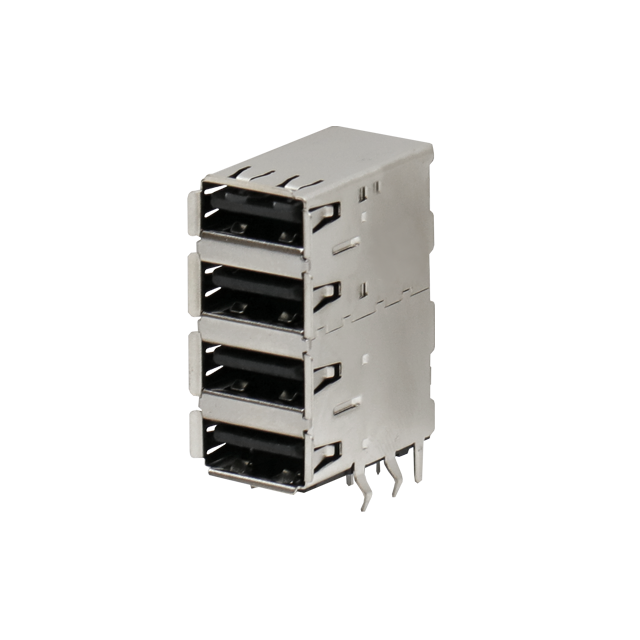

SS-52100-004 USB Connectors

Name: SS-52100-004
Brand: Stewart Connector
SKU: SS-52100-004

USB 2.0 - A Connector | 4 Port | Receptacle | Shielded

View Compatible Products

View Drawing

View Datasheet

Stock Check

Request Quote

Specifications

Specs

3D Model

PCB Footprint

PCB

Resources

Technical Support

Features & Specifications

Product Type	USB
Mounting Style	PCB Mount
Number of Ports	4
Number of Rows	4
Orientation	Horizontal
Connector Style	USB - A
Gender	Female
Performance	USB 2.0
Termination	Through Hole
IP Rating	None
Shielding	Yes
Contact Plating Thickness	6 micro-inches
Brand	Stewart Connector
LED	No
Flange	No
Shell Plating	Nickel
Tail Length (in)	0.093
