USB Connectors
Cinch provides robust USB connector solutions designed to support secure, high-speed connectivity for a wide range of digital devices.
Product Resources
Attribute Filters
Product Type
Number of Rows
Number of Ports
Connector Style
Performance
Orientation
IP Rating
Termination
LED
Contact Plating
Tail Length (in)
24 Products
Show Filters
Hide Filters
| Product | Product Type | Number of Rows | Number of Ports | Connector Style | Performance | Orientation | Tail Length (in) |
|---|---|---|---|---|---|---|---|
| USB | 1 | 1 | USB - A | USB 3.0 | Horizontal | 0.112 | |
| USB | 1 | 1 | USB - A | USB 3.0 | Horizontal | 0.105 | |
| USB | 2 | 2 | USB - A | USB 3.0 | Horizontal | 0.126 | |
| USB | 1 | 1 | USB - A | USB 3.0 | Vertical | 0.118 | |
| USB | 4 | 4 | USB - A | USB 3.0 | Horizontal | 0.137 | |
| USB | 1 | 1 | USB - A | USB 2.0 | Horizontal | 0.112 | |
| USB | 1 | 1 | USB - A | USB 2.0 | Vertical | 0.114 | |
| USB | 2 | 2 | USB - A | USB 2.0 | Horizontal | 0.112 | |
| USB | 4 | 4 | USB - A | USB 2.0 | Horizontal | 0.093 | |
| USB | 1 | 1 | USB - A | USB 2.0 | Horizontal | 0.125 | |
| USB | 1 | 1 | USB - A | USB 2.0 | Horizontal | 0.125 | |
| USB | 1 | 1 | USB - B | USB 2.0 | Horizontal | 0.112 | |
| USB | 1 | 1 | USB - B | USB 2.0 | Vertical | 0.12 | |
| USB | 1 | 1 | USB - C | USB 3.2 | Horizontal | 0.024 | |
| USB | 1 | 1 | USB - C | USB 3.1 | Horizontal | 0.059 | |
| USB | 1 | 1 | USB - C | USB 3.1 | Horizontal | 0.075 | |
| USB | 1 | 1 | USB - C | USB 3.1 | Horizontal | 0.026 | |
| USB | 1 | 1 | USB - C | USB 4.0 | Horizontal | 0.063 | |
| USB | 1 | 1 | USB - C | USB 4.0 | Vertical | 0.067 | |
| USB | 1 | 1 | USB - C | USB 3.2 | Horizontal | 0.138 | |
New Product
|
USB | 1 | 1 | USB - C | USB 3.2 | Flag | N/A |
New Product
|
USB | 1 | 1 | USB - C | USB 3.0 | Vertical | N/A |
| USB/RJ Combo | 2 | 2 | USB - A | USB 3.0 | Horizontal | 0.108 | |
| USB/RJ Combo | 2 | 2 | USB - A | USB 3.0 | Horizontal | 0.098 |
Drawing
3D Model

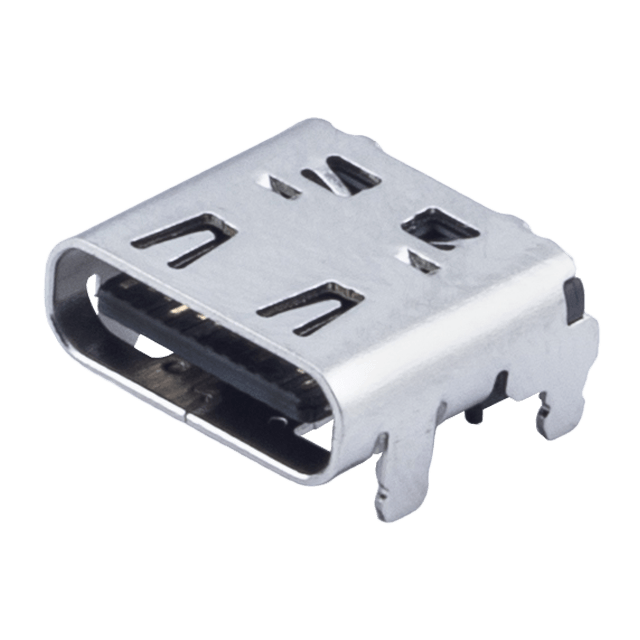

USB Type-C Connector
USB 3.1
1 Port
Horizontal Receptacle
Shielded
0.039 in (1.00mm) PCB Thickness
USB 3.1
1 Port
Horizontal Receptacle
Shielded
0.039 in (1.00mm) PCB Thickness
USB Type-C Connector
USB 3.1
1 Port
Horizontal Receptacle
Shielded
0.063 in (1.60mm) PCB Thickness
USB 3.1
1 Port
Horizontal Receptacle
Shielded
0.063 in (1.60mm) PCB Thickness
USB Type-C Connector
USB 4.0
1 Port
Horizontal Receptacle
Shielded
0.047 in (1.20mm) PCB Thickness
USB 4.0
1 Port
Horizontal Receptacle
Shielded
0.047 in (1.20mm) PCB Thickness

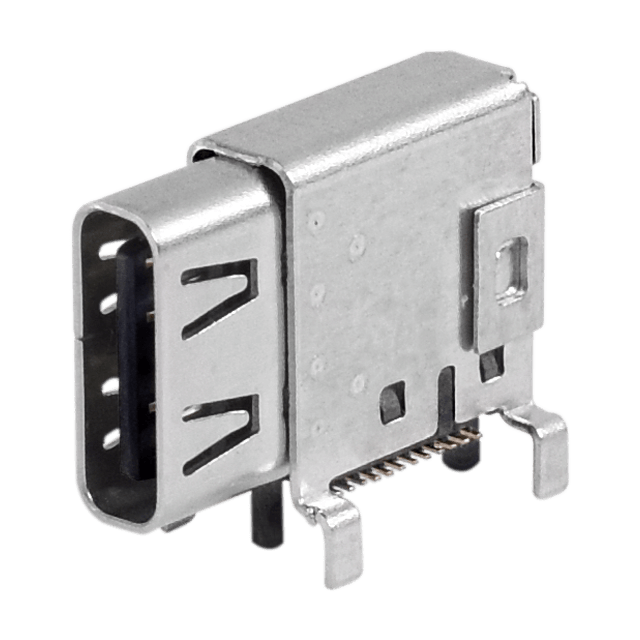

USB Type-C 3.2 Flag Connector
Operating voltage rating 20 V
Operating temperature range -40°C ~ +85°C
Operating voltage rating 20 V
Operating temperature range -40°C ~ +85°C

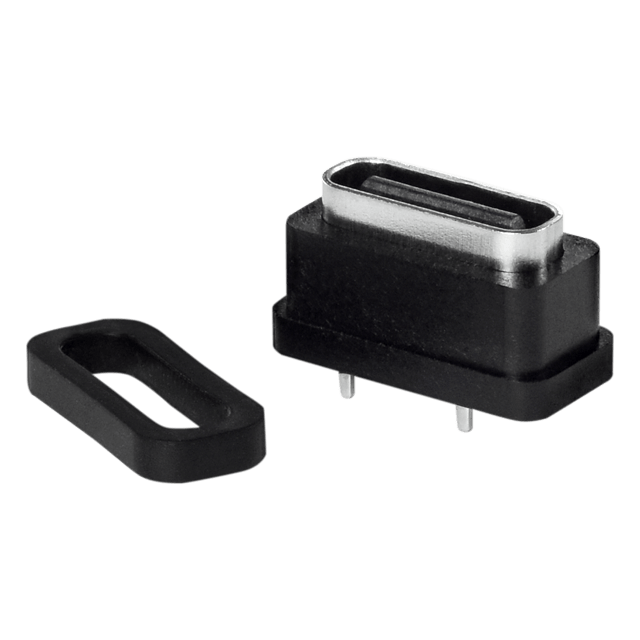

USB Type-C 3.0 IP67 Vertical USB port
Meets 5Gbp
Operating voltage rating 20 V
Operating temperature range -25°C ~ +85°C
Allows for a reversible mating interface, providing an easy and reliable mating of the plug to jack in any plug direction
Meets 5Gbp
Operating voltage rating 20 V
Operating temperature range -25°C ~ +85°C
Allows for a reversible mating interface, providing an easy and reliable mating of the plug to jack in any plug direction
RJ45 over USB 3.0 Type A passive jack
Tab Up
Y/G LEDs
8 Contact
8 Position
Shielded
Tab Up
Y/G LEDs
8 Contact
8 Position
Shielded
RJ45 over USB 3.0 Type A passive jack
Tab Up
No LEDs
8 Contact
8 Position
Shielded
Tab Up
No LEDs
8 Contact
8 Position
Shielded
