SS-52400-007 USB Connectors

Name: SS-52400-007
Brand: Stewart Connector
SKU: SS-52400-007

IP67 USB Type-C 3.2 | Horizontal | Waterproof Dip Connector

View Compatible Products

View Drawing

View Datasheet

Stock Check

Request Quote

Specifications

Specs

3D Model

PCB Footprint

PCB

Resources

Technical Support

Features & Specifications

Product Type	USB
Mounting Style	PCB Mount
Number of Ports	1
Number of Rows	1
Orientation	Horizontal
Connector Style	USB - C
Gender	Female
Performance	USB 3.2
Termination	Through Hole
IP Rating	IP67
Shielding	Yes
Brand	Stewart Connector
LED	No
Flange	No
Shell Plating	Nickel
Tail Length (in)	0.138

Compatible Products with SS-52400-007

Clear Filters

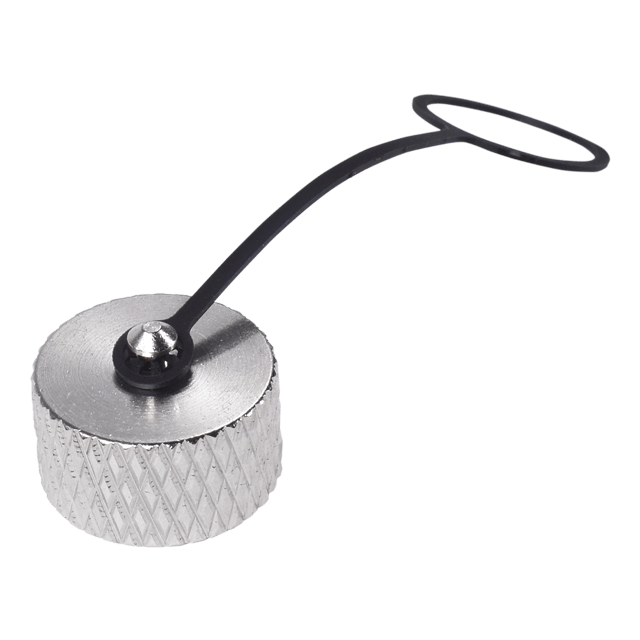

Accessories SS-52400-011 Tooling & Accessories Metal Dust Cap 5/8" with tether for right-angle USB-C waterproof DIP connector SS-52400-007 | IP67 rating

Mating 67U3CD-030M-K USB Cable Assemblies IP67 USB 3.1 Type C Male to Blunt Cable Assembly 3m

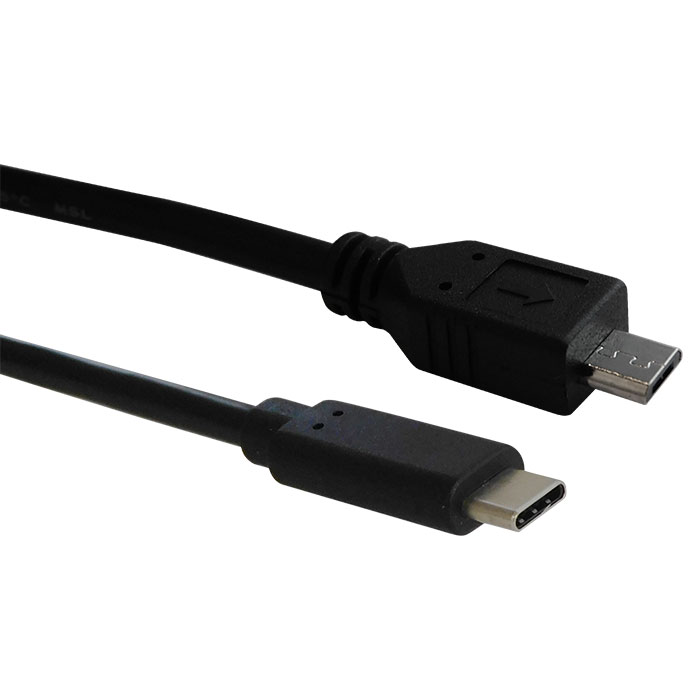

Mating SC-2CMK020M USB Cable Assemblies USB 2.0 Cable Assembly | Type C to Type Micro B 5-Pin | 2m

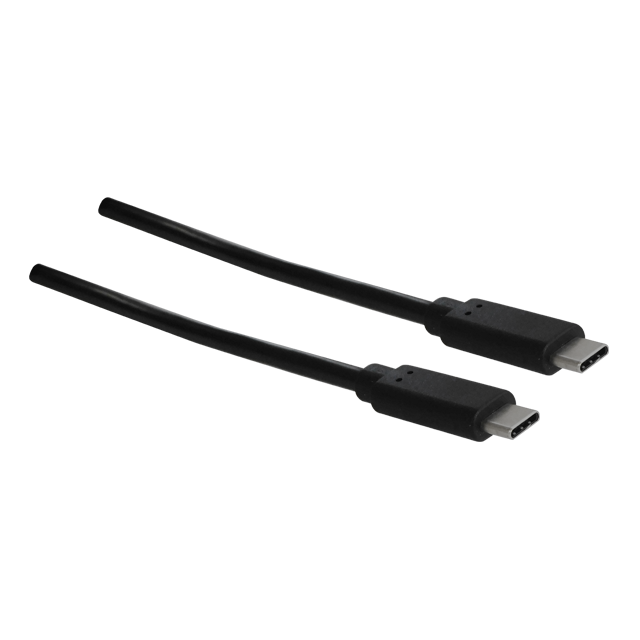

Mating SC-3CCK020M USB Cable Assemblies USB 3.1 Cable Assembly | Type C to Type C | 2m

Mating SC-2CAK030M USB Cable Assemblies USB 2.0 Cable Assembly | Type C to Type A | 3m

Mating 67U3CD-010M-K USB Cable Assemblies IP67 USB 3.1 Type C Male to Blunt Cable Assembly 1m

Mating SC-2CMK010M USB Cable Assemblies USB 2.0 Cable Assembly | Type C to Type Micro B 5-Pin | 1m

Mating SC-2CAK010M USB Cable Assemblies USB 2.0 Cable Assembly | Type C to Type A | 1m

Mating SC-3CAK010M USB Cable Assemblies USB 3.0 Cable Assembly | Type C to Type A | 1m

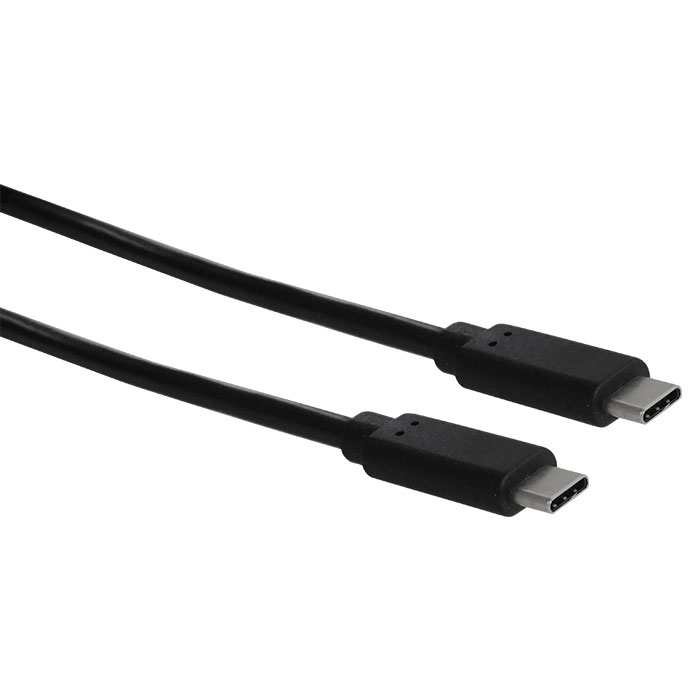

Mating SC-3CCK010M USB Cable Assemblies USB 3.1 Cable Assembly | Type C to Type C | 1m

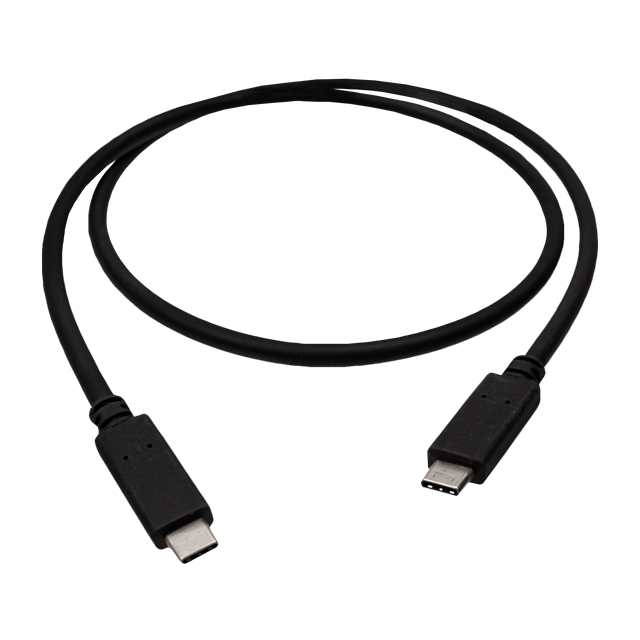

Mating SC-4CCK010M USB Cable Assemblies USB 4.0 Cable Assembly | Type C to Type C | 1m

Mating SC-2CAK020M USB Cable Assemblies USB 2.0 Cable Assembly | Type C to Type A | 2m
