RF & Microwave Twinax/Triax Cable
Cinch's RF & Microwave cable assemblies are ideal for applications requiring high performance and low loss.
Product Resources
Attribute Filters
Cable Type
Jacket
Impedance (Ohms)
Cable Group
11 Products
Show Filters
Hide Filters
| Product | Drawing | 3D Model | Cable Type | Jacket | Impedance (Ohms) | Cable Group |
|---|---|---|---|---|---|---|
| Twinax | Teflon | 78 | 47 and 201 | |||
|
Triax | PVC | 50 | -32 and -309 | ||
|
|
Triax | PVC | 50 | -7 and -306 | ||
|
|
Triax | PVC | 75 | -33 and -307 | ||
|
|
Triax | PVC | 75 | -7 and -308 | ||
|
|
Twinax | PVC | 124 | 29 and -203 | ||
|
|
Twinax | PVC | 124 | 9 and -214 | ||
|
|
Twinax | PVC | 78 | 29 and -202 | ||
|
|
Twinax | PVC | 78 | 9 and -213 | ||
|
|
Twinax | Halogen | 78 | -9 and -213 | ||
|
|
Twinax | Plenum | 78 | -9 and -213 |

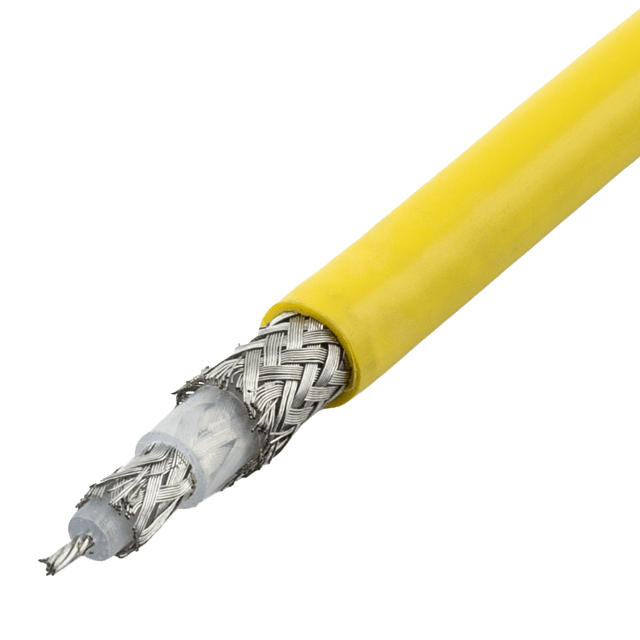

Trompeter TRC-50-1 triax cable is used in instrumentation, video systems, wafer processing and where ever noise immunity is required. It belongs to cable groups -32 and -309 and can be terminated with the wide range of Trompeter triax connectors.
Trompeter TWC-78-1 is a leading twinax cable used in MIL-STD-1553B data bus applications. It belongs to cable groups -29 and -202, and has an impedence of 78 ohms. It can be terminated with several different Trompeter MIL-STD-1553B connectors.
